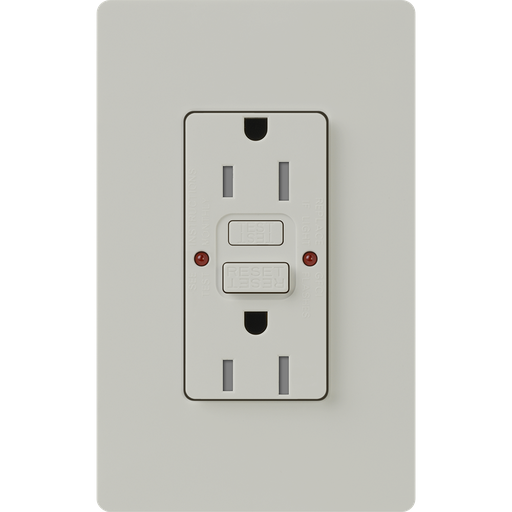

Product image for Lutron SCR-15-GFST-PD SC 15A GFCI SELF
Email

Lutron SCR-15-GFST-PD SC 15A GFCI SELF

Manufacturer: Lutron | Catalog # SCR-15-GFST-PD | Echo Electric Part # 176009
$83.30/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Self-testing technology allows GFCI to automatically check proper operation every 30 seconds. LEDs indicate status of GFCI protection function. Press reset button to reset GFCI after circuit interruption. Wallplate sold separately.

Technical Information

Amperage
15 Amp
Applications
Lighting
Conductor Size
14-10 AWG
Connection Type
Screw-Type Terminals
Insulation Material
Plastic
Material
Metal
Mounting Type
Wallbox
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3,4,5 Wire
Size
75 in
Standard
CEC,CSA,NEC,NOM,OSHA,UL
TC Connection
Screw terminal
Temperature Rating
104 degrees F
Type
GFCI Receptacle
Voltage
125 Volt
Wattage
1875 Watt
Wire Size
10 AWG

Manufacturer Information

Brand
Claro
Sub Brand
Designer

General Product Info

12-Digit UPC
784276159029
Color
Palladium
Environmental Conditions
0 To 90% Humidity,Non-condensing
Finish
Satin
GTiN
00784276159029
Product UPC
78427615902

Certifications and Compliance

Country of Origin
China
Standards and Certifications
  • UL
  • CSA
  • NOM
  • NEC
  • CEC
  • OSHA
Features
  • Continuous self-test functionality - disconnects power to receptacle if critical components are damaged and GFCI protection is lost, providing \"continuous self-testing\" that initiates within 2.5 seconds and is a continuous cycle every 30 seconds or less
  • Manual Test - this design incorporates a full system test function. The GFCI, when manually tested, induces a simulated ground fault leakage current to the printed circuit board, causing the mechanical system to react based on the action of the solenoid.
  • Reverse wire safety feature, if wired incorrectly there will be no power to the face or to downstream receptacles for added safety.
  • Clear visual indication of GFCI status LED indicating lights: - Green LED (power to the device) - Red LED (trip condition/ground fault condition) - Flashing Red LED (end of life)
  • Permanently installed internal tamper-resistant shutter mechanism capable of resisting insertion of foreign elements into the device.
  • Internal back wiring clamp and guide pocket, quick and dependable termination.
  • Self-testing technology allows GFCI to automatically check proper operation every 30 seconds
  • LEDs indicate status of GFCI protection function
  • Press reset button to reset GFCI after circuit interruption
  • Wallplate sold separately.
