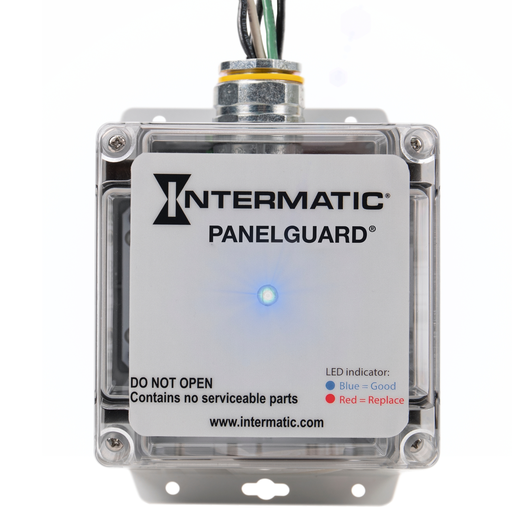

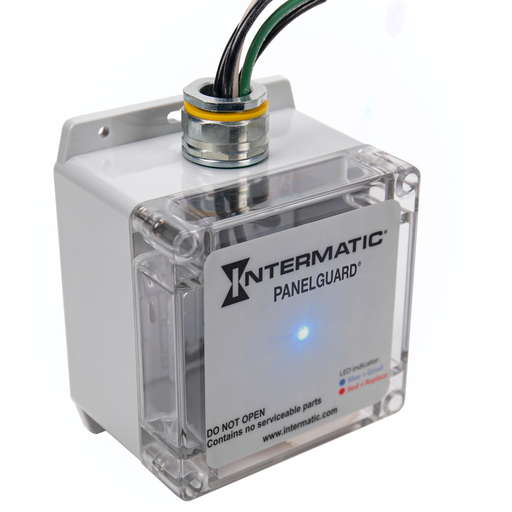

Intermatic L5F13Y1DG1 Surge Protective Device, 4-Mode, 120/208 VAC 3Ph Y, Type 1, Surge Current Rating 50kA

Manufacturer: Intermatic, Inc | Catalog # L5F13Y1DG1 | Echo Electric Part # 176314
$422.47/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Intermatic PANELGUARD® Surge Protective Devices are designed to react quickly and eliminate surges providing optimal protection to downstream equipment. PANELGUARD Industrial/Commercial-grade series are Parallel Connected Surge Protective Devices designed to protect all types of loads fed from individual disconnects, sub-panels, distribution panels and service entrance locations.

Technical Information

Applications
Distribution Panel,Service Entrance
Max Operating Temperature
176 degrees F
Min Operating Temperature
-40 degrees C

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275151734
Color
Gray
GTiN
00078275151734
Product UPC
07827515173
Weight
0.5 lb

Dimensions

Depth
3.54 Inch
Height
6.46 Inch
Warranty Length
5 yr
Width
4.81 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Country of Origin
USA
Features
  • Type 1 surge protection
  • Optional audible alarm and dry relay contacts
  • 4 Modes of protection
  • NA

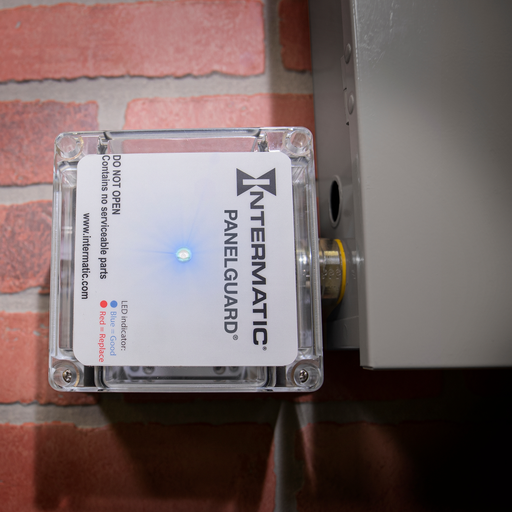

  • NEMA 4X enclosure for indoor or outdoor installation
  • Individually integrated disconnect TPMOV surge protection technology
  • Blue LED protection status indicator, and red LED service indicator
  • UL Listed to ANSI/UL 1449 5th Edition
