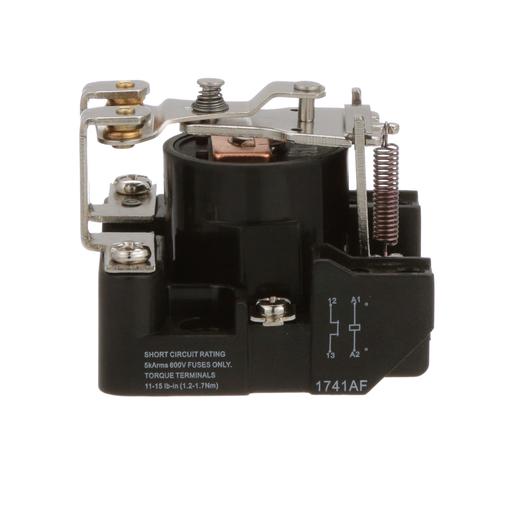

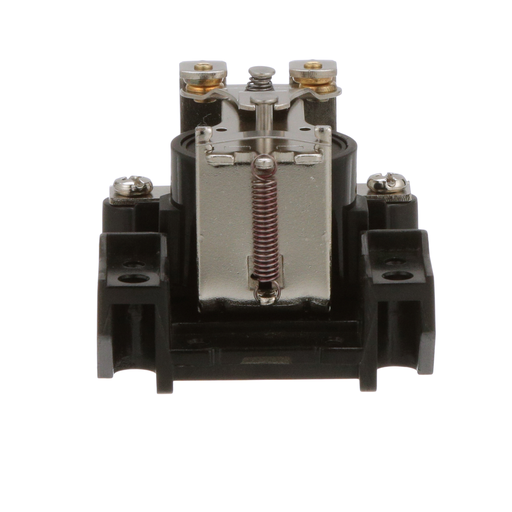

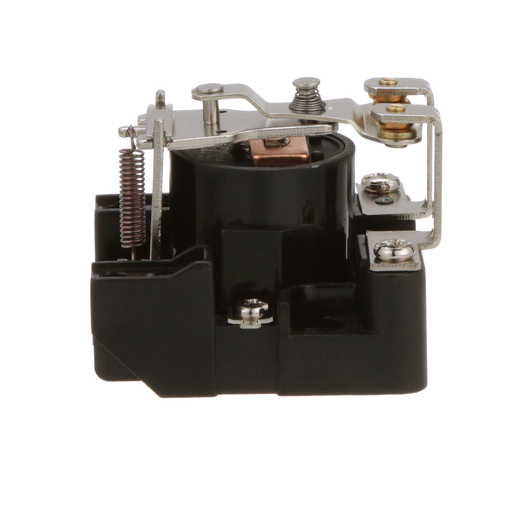

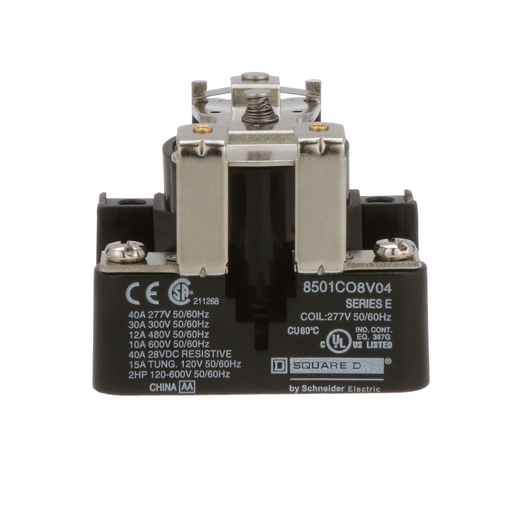

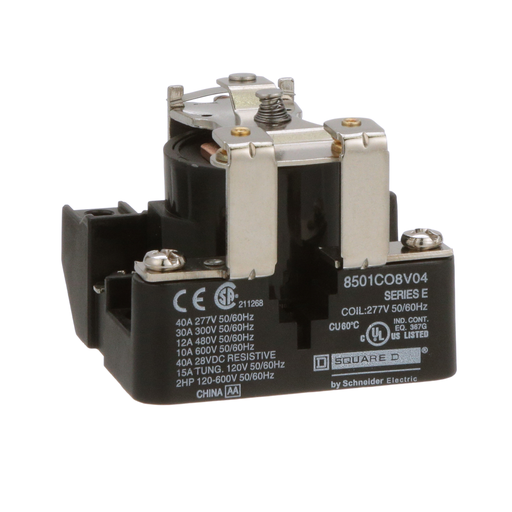

Product image for Square D 8501CO8V04 277 VAC 30 Amp 1-Pole SPST 1NC Panel Mount AC Operated Power Relay
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Square D 8501CO8V04 277 VAC 30 Amp 1-Pole SPST 1NC Panel Mount AC Operated Power Relay

Manufacturer: Square-D / Schneider | Catalog # 8501CO8V04 | Echo Electric Part # 176324
$105.06/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a SPST contact configuration with no normally open and one normally closed contact. A variety of coil voltages are available. This relay has a 277 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 2 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 10 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.

Technical Information

Amperage
30 Amp
Applications
SUITED FOR CONTROLLING SMALL SINGLE PHASE MOTORS AND OTHER LIGHT LOADS SUCH AS ELECTRIC HEATERS, PILOT LIGHTS OR AUDIBLE SIGNALS.
Contact Configuration
1 NC
Contact Rating
AC RATED
Line Rated Current
30 A
Number of Phases
1 Phase
Number of Poles
PANEL MOUNT
Operating Temperature
-22-122 degrees F
Size
1500
TC Connection
SCREW CLAMP
Type
Power relay

Manufacturer Information

Brand
Square D
Sub Brand
Type C

General Product Info

12-Digit UPC
785901089780
Environmental Conditions
-67 TO 131?F
GTiN
00785901089780
Product UPC
78590108978

Dimensions

Depth
2-1/4 Inch
Height
2.43 Inch
Warranty Length
18 mth
Width
2.5 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL Listed File E78351 CCN NLDX
Country of Origin
China
Compatible Products
  • 9991UE1
