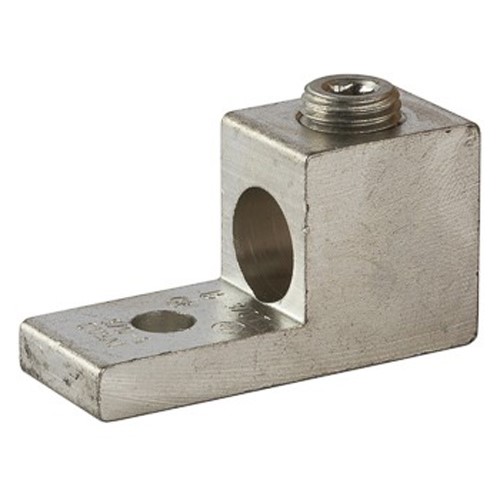

NSI 3/0T 0.26 Inch 6 to 3/0 AWG Aluminum 1-Port 1-Hole Dual Rated Lug

Manufacturer: NSi | Catalog # 3/0T | Echo Electric Part # 176453
$8.40/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet
Aluminum Dual-Rated Single Lug 3/0-6 AWG with 1/4 Inch bolt size for use with copper or aluminum conductors. These Lugs are versatile and feature reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Temperature Rating 90 degrees C. Rated 600 volts (2000V max. per UL486B). UL 486A/B Listed. .

Technical Information

Applications
Wire Termination
Bolt Size
1/4 IN
Conductor Size
6-3/0 AWG
Material
6061T-6 Aluminum Alloy
Max Temperature
90 degrees C
Mounting Hole
1
Number of Conductors
1,1
Number of Poles
1 Pole
Number of Ports
1
Standard
CULUS
Temperature Rating
90 degrees C
Type
Aluminum Single Lug
Voltage
600 Volt
Wire Size
6-000 AWG

Manufacturer Information

Brand
NSI Industries
Sub Brand
Mechanical Connector

General Product Info

12-Digit UPC
662381001054
Color
Aluminum
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381001054
Product UPC
66238100105

Dimensions

Height
0.89 Inch
Length
1-7/8 Inch
Warranty Length
1 yr
Width
0.7 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Versatile and reusable set-screw connectors made of 6061T-6 aluminum alloy
  • Electro-tin plated for low contact resistance
  • For use with copper or aluminum conductors
  • 1/4\" Bolt Size
  • Rated 600 volts (2000V max. per UL486B)
Certifications and Standards
  • cULus
  • UL Listed
  • UL 486A-486B
