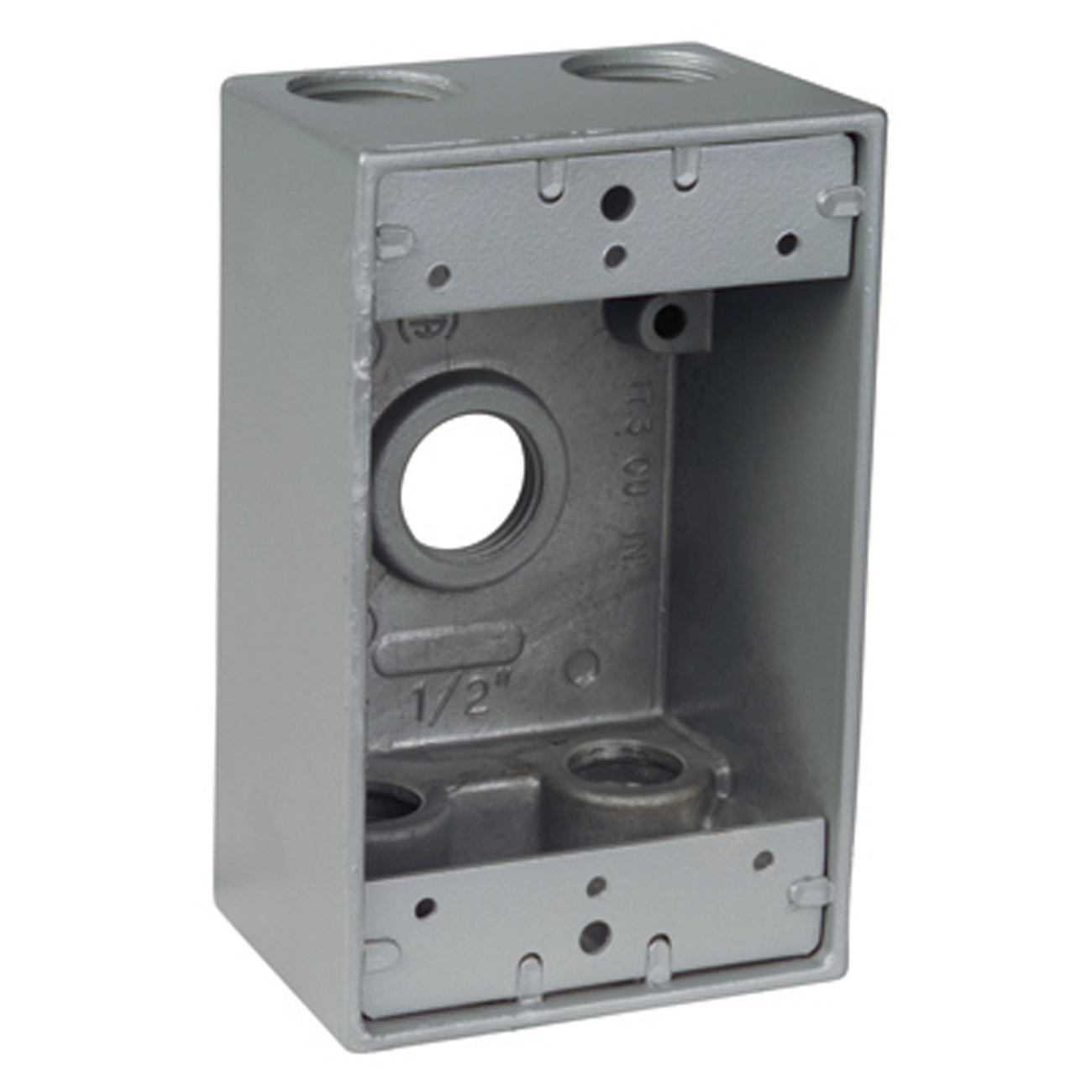

Red Dot IH5-1-LM 1-Gang Weatherproof Metallic Device Box, (5) 1/2" Hubs, 2" Deep

Manufacturer: Thomas & Betts Co | Catalog # IH5-1-LM | Echo Electric Part # 176540
$1,652.24/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
31 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet
Single Gang Universal Weatherproof Box, 19.0 Cubic Inches, Hub Size 1/2 Inch, Silver, Aluminum, 5 Outlets, Two on Top, and Bottom and One on Back, with Mounting Lugs

Technical Information

Applications
Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations
Cable Entry
1/2 in Hub
Material
Aluminum
Number of Gangs
1 Gang
Type
5-Outlet, Universal

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Red Dot®

General Product Info

12-Digit UPC
042269393158
Color
Silver
Finish
Powder Coated
GTiN
05414363936671
Product UPC
04226939315

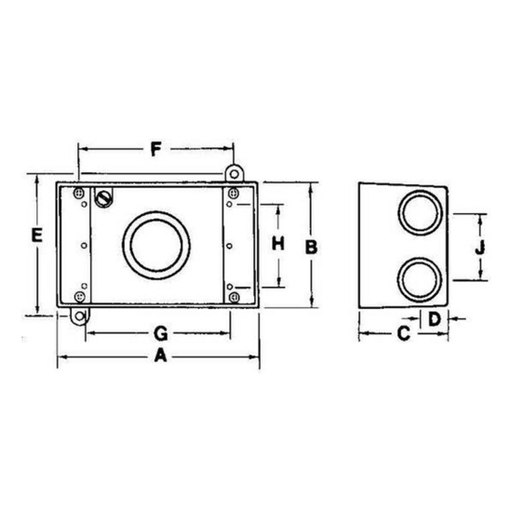

Dimensions

Height
5.3 Inch
Width
10.9 in
Features
  • Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.
  • Precision cast and machined surfaces permit safer wire pulling.
  • Clean cover edges provide good gasket sealing.
  • Clear UL and cubic content markings speed approval by inspectors
  • Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance
  • Securely fastened mounting plates reduce costly call backs
  • Convenient mounting lugs for a variety of mounting methods
Notes
  • Rain tight when used with appropriate Red Dot covers.
Application
  • Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
  • Junction box for branch conduits
  • Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices
Certifications
  • UL
