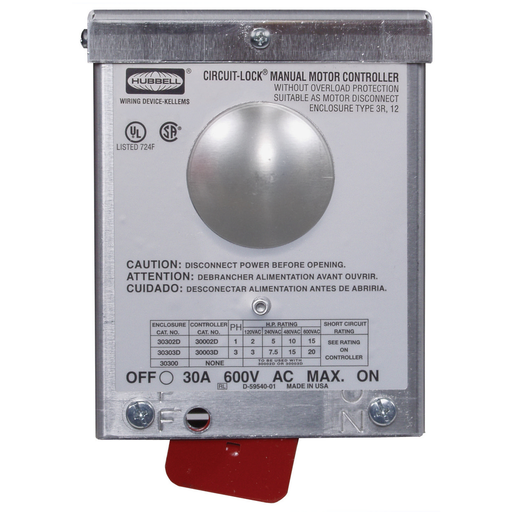

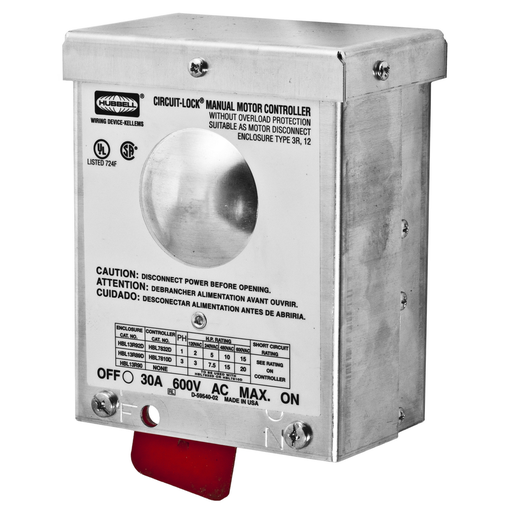

Hubbell HBL13R89D30A 600V 3P DISC SW w/NEMA 3R

Manufacturer: Hubbell Wiring Device | Catalog # HBL13R89D | Echo Electric Part # 176716
$224.92/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Industrial Grade, Toggle Switches, Motor Disconnects, Three Pole, 30A 600V AC, Back and Side Wired, Aluminum, NEMA 3R Enclosure with Switch

Technical Information

Amperage
30 Amp
Applications
For Motor Starting Without Overload Protection
Connection Type
Pressure Screw Terminal
Current
30 Amp
Enclosure Rating
3R
Enclosure Type
NEMA 3R
Horsepower
20 hp
Mounting Type
Screw
Number of Phases
1 Phase
Number of Poles
3 Pole
Operating Temperature
-40 degrees C
Power Rating
18,000 W
Size
Standard Sized Product
Standard
CSA-C22.2 No.14 Industrial Control File LR-46186,Industrial Control File #E70402,UL 508
Style
Standard Duty
TC Connection
Pressure Screw Terminals
Temperature Rating
Minimum Continuous -40 Deg C without Impact
Type
Enclosed, Standard
Voltage
600 VAC
Wattage
18000 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Manual Motor Controllers

General Product Info

12-Digit UPC
783585202686
Color
Aluminum
GTiN
00783585202686
Product Series
Non-Fused
Product UPC
78358520268
Weight
1.55 lb

Dimensions

Height
3.3 Inch
Length
5.52 Inch
Width
4.4 in

Certifications and Compliance

Country of Origin
USA
Features
  • Optional Side Guard for close wall applications
  • Clamping plate for secure back or side wiring
  • Thermoset body provides resistance to electrical arc tracking
  • Standard Product
