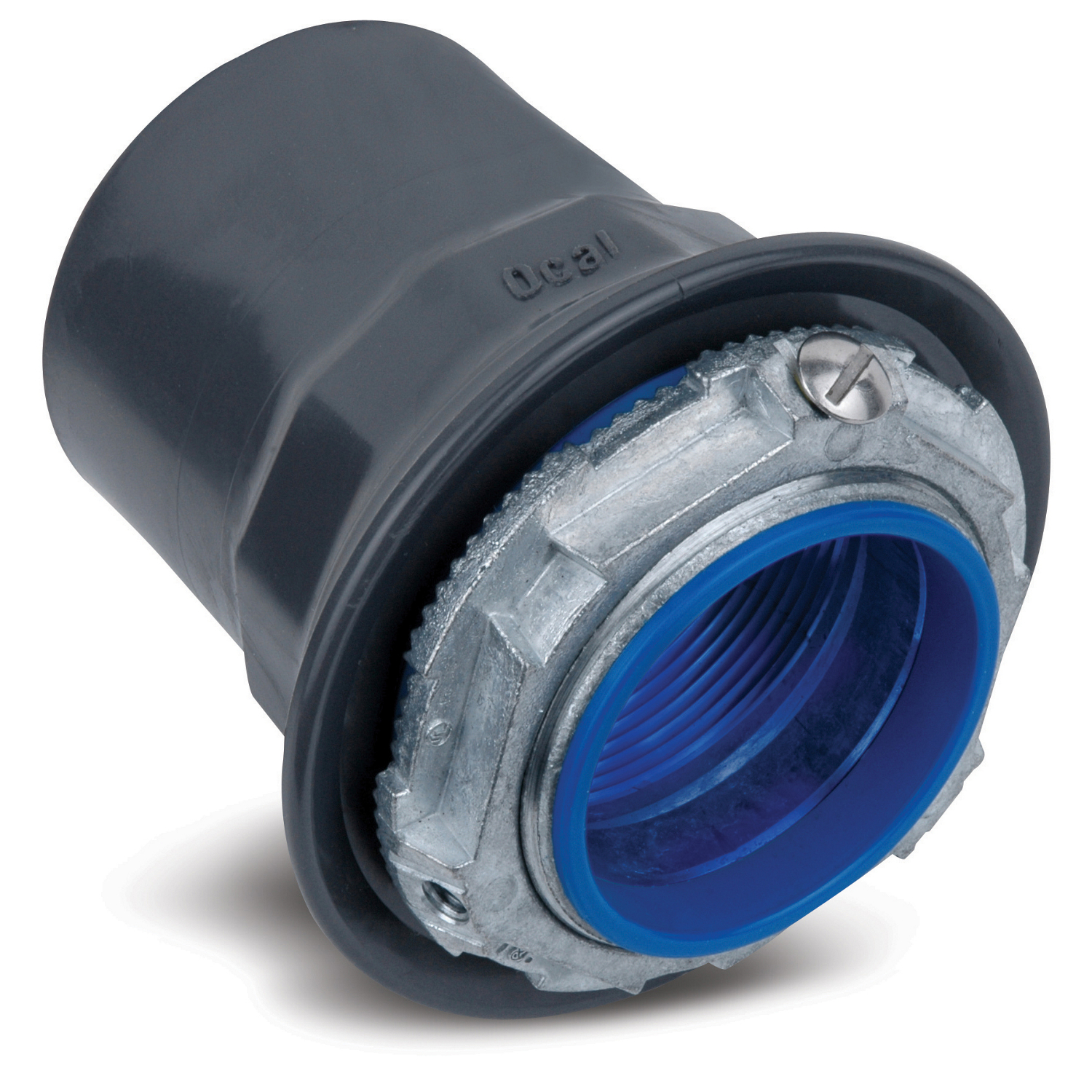

Ocal STG8-G 3 Inch Gray PVC Coated Zinc Threaded Knockout Grounding Insulated Conduit Hub

Manufacturer: Thomas & Betts Co | Catalog # STG8-G | Echo Electric Part # 176952
$712.15/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page

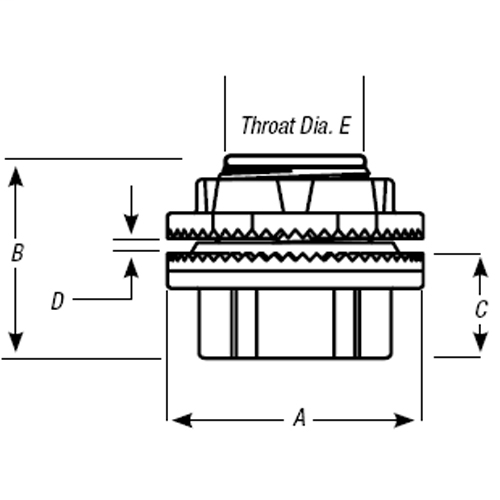

PVC Coated Zinc Grounded Hub with Thermoplastic Insulated Throat, Pipe Size 3 Inch/78 Metric, Overall Diameter 4.38 Inch/111.25 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 2.97 Inch/75.44 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray

Technical Information

Applications
Positively Bonds Conduit to Box or Enclosure
Material
Zinc
Size
3 in
Temperature Rating
105 degrees C
Trade Size
3 Inch
Type
Grounded

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Ocal®

General Product Info

12-Digit UPC
704508409067
Color
Gray
Finish
PVC Coated
GTiN
00704508409067
Product UPC
70450840906
Features
  • Hexagonal body and locknut design.
  • Insulated throat and sharper and deeper teeth.
  • Innovative sealing ring and groove.
  • A minimum .040 in. (40 mil) PVC Coating is bonded to the exterior.
  • Coated with a nominal .002 in. (2 mil) blue urethane on the interior, before PVC Coating is applied.
  • Pressure sealing sleeves to protect the connection.
Notes
  • Standard color is dark gray. Also available in white and light blue. Custom colors are also available upon request. Please contact Technical Services, 888-862-3289.
  • Dimensional values are of uncoated fittings.
