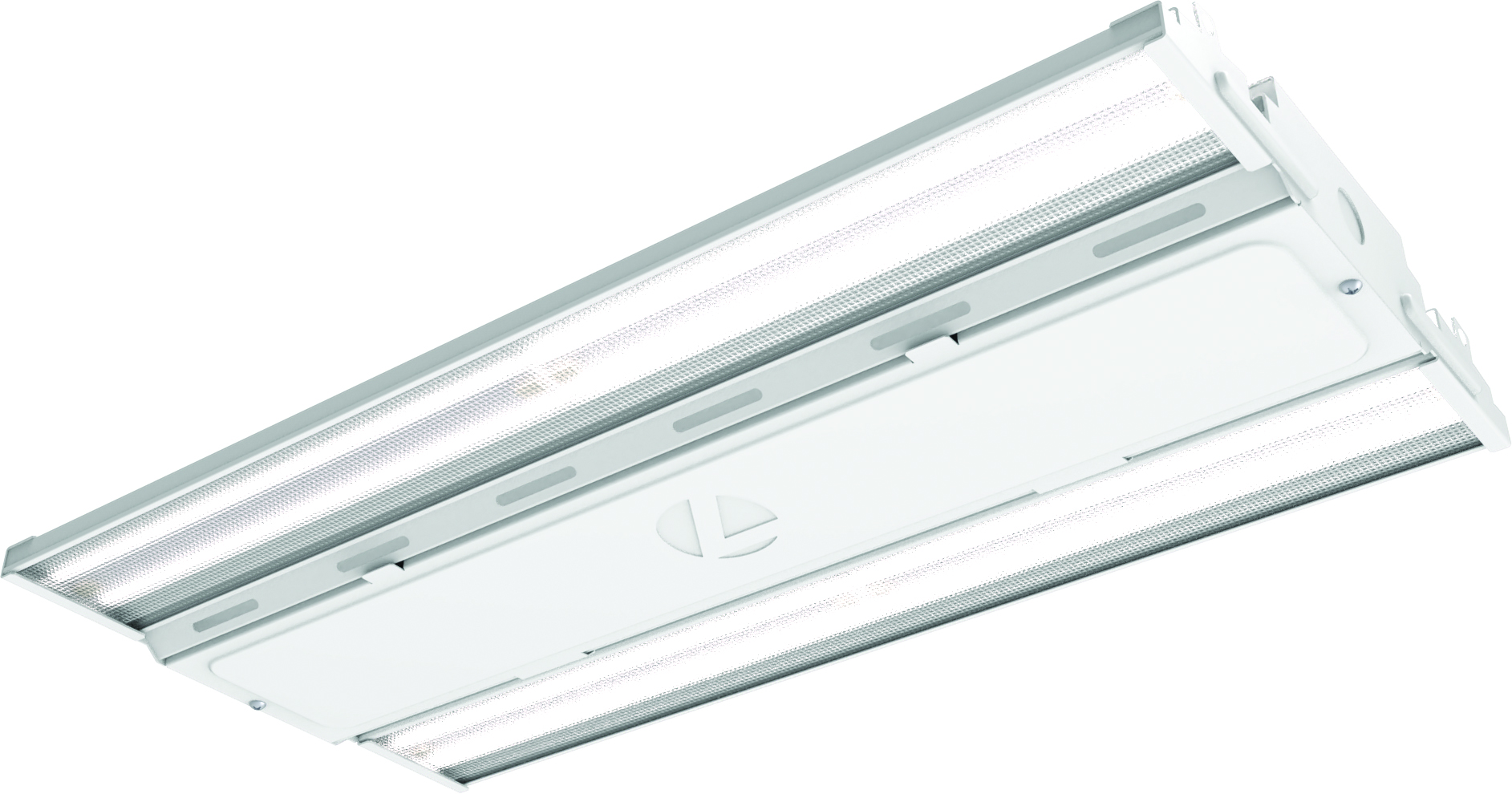

Product image for Lithonia CPHB-24LM-MVOLT-50K Compact Pro™ 22" Industrial LED High Bay Fixture, 120-277V, 25,054 Lumens, 5000K, White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Lithonia CPHB-24LM-MVOLT-50K Compact Pro™ 22" Industrial LED High Bay Fixture, 120-277V, 25,054 Lumens, 5000K, White

Manufacturer: Lithonia Lighting | Catalog # CPHB24LMMVOLT50K | Echo Electric Part # 177074
$276.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
11 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet
The Compact Pro High Bay by Lithonia Lighting delivers an industrial-grade lighting solution in an exceptionally compact fixture that provides for cheaper shipping, condensed storage, and quicker installation. Built with quality to last and performance to get the job don, all at an affordable price.

Technical Information

Applications
Common Areas,Education,Government,Manufacturing,Offices & Banks,Retail,Retrofit,Warehouses
Average Rated Life
100,000 hr
Color Rendering Index
80
Color Temperature
5000 K
Correlated Color Temp
5000 K
Dimmable?
Yes
Lamp Life
100,000 hr
Lamp Type
LED
Lens Color
Clear
Lens Material
Acrylic
Lumens
24, 000 Lumen
Material
Aluminum
Mounting Type
Pendant,Surface,Suspended
Size
22.5x11.5x2.3 IN
Standard
CSADLC Premium
Style
Traditional
TC Connection
Hardwired
Type
High Bay
Voltage
120 Volt
Wattage
174 Watt

Manufacturer Information

Brand
Lithonia Lighting
Sub Brand
Contractor Select

General Product Info

12-Digit UPC
194994429753
Color
White
Construction
New Construction,Remodel
Environment
Indoor
Environmental Conditions
Indoor
Finish
Gloss
Fixture Type
High Bay
GTiN
00194994429753
Product Type
High Bay
Product UPC
19499442975
Shape
Rectangle
Weight
8 lb

Dimensions

Height
2.3 Inch
Length
22-1/2 Inch
Warranty Length
5 yr
Width
11.5 in

Certifications and Compliance

Country of Origin
Mexico,Mexico
Features
  • TECHNOLOGY:Glare reduction optics featuring WhiteOptics® Technology allowing for maximum light output while reducing glare
  • ENERGY SAVINGS:LEDs provided 80 color rendering index (CRI), nominal 12,000 lumens at 4000K with a cool white color temperature
  • DIMMING: Thermally protected driver standard with 0-10V dimming
  • RATINGS: Suitable for damp location, CSA listed.
  • VOLTAGE: Multi-volt driver, 120-277V standard
  • HOURS OF LIFE: 70% lumen maintenance at > 100,000 hours
  • INSTALLATION: Fixture is suitable for mounting by chain, cable, surface-mount bracket, pendant monopoint, or hook monopoint
  • BATTERY: LED emergency driver sold separately
  • WARRANTY: Buy with confidence, 5 year limited warranty
Application
  • Common Areas
  • Education
  • Government
  • Manufacturing
  • Offices & Banks
  • Retail
  • Retrofit
  • Warehouses
Mounting
  • Pendant
  • Surface
  • Suspended
Standard
  • CSADLC Premium
