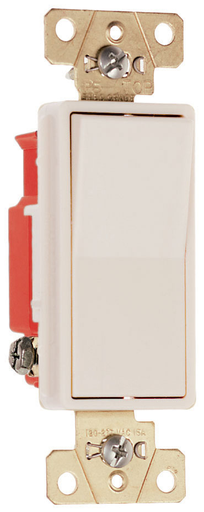

Product image for Pass & Seymour 2623-LA Three-way, Back and Side Wire, Decorator Switch, 20 amps, 120/277V - Light Almond
Email

Pass & Seymour 2623-LA Three-way, Back and Side Wire, Decorator Switch, 20 amps, 120/277V - Light Almond

Manufacturer: Pass & Seymour / Legrand | Catalog # 2623-LA | Echo Electric Part # 177154
$53.78/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Three-way, Back and Side Wire, Decorator Switch, 20 amps, 120/277 volts, Brown.

Technical Information

Actuator
Paddle, Rocker/Button
Amperage
20 Amp
Applications
For Industrial Use
Contact Rating
20 A at 120/277 VAC
Material
Thermoplastic
Mounting Type
Flush/Wall
Number of Poles
1 Pole
Size
4.25"
Style
Decorator
Type
3-Way, Halogen-Free, Impact-Resistant
Voltage
120 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007539561
Color
Light Almond
Finish
Gloss
GTiN
00785007539561
Product UPC
78500753956
UNSPSC
39121507

Dimensions

Depth
1.06 Inch
Height
4.2 Inch
Width
1.3 in

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
Mexico
Features
  • Impact-resistant polycarb back body and frame.
  • Cushioned thermoplastic paddle assures smooth, quiet, long term operation.
  • Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.
  • Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.
  • Terminals made of high conductivity brass and serrated for maximum wire gripping.
  • Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.
  • Integral auto-ground clip for positive ground to metal boxes.
  • Tri-drive ground, terminal, and mounting screws.
  • All terminal screws backed out, ready-to-install.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • cULus Listed
  • UL Listed
  • CSA Listed
