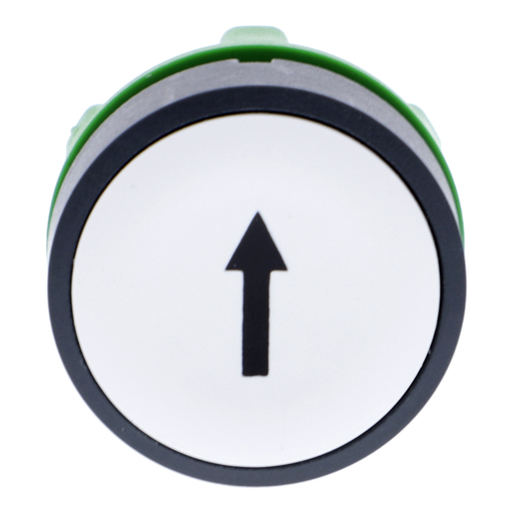

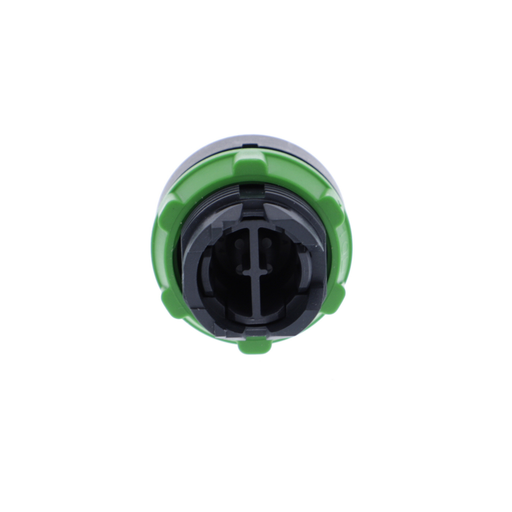

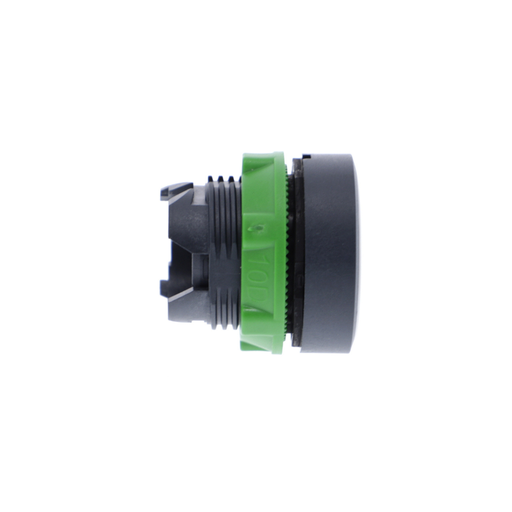

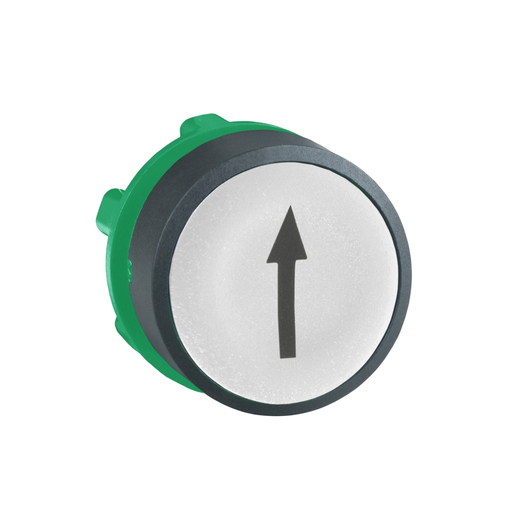

Product image for Square D ZB5AA334 22 mm White/Black Round Flush Momentary Non-Illuminated Push Button Operator
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3

Email

Square D ZB5AA334 22 mm White/Black Round Flush Momentary Non-Illuminated Push Button Operator

Manufacturer: Square-D / Schneider | Catalog # ZB5AA334 | Echo Electric Part # 177209

$28.40/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
This Harmony XB5, flush white button head operates with a spring return mechanism. It is marked with a "Up arrow" symbol. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Technical Information

Action
SPRING RETURN
Actuator
SPRING RETURN,WHITE FLUSH, UP ARROW BLACK)
Applications
PUSH-BUTTON
Bezel Material
Plastic
Enclosure
NEMA 13-NEMA 4X
Head Type
Standard
Indicator
WHITE
Net Weight
0.018 kg
Operating Temperature
-40-70 Adegrees C
Size
0.87 in
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
Type
Head for non-illuminated push-button

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB5

General Product Info

12-Digit UPC
389110134585
Color
White
Environmental Conditions
IP 65
GTiN
03389110134582
Product UPC
78590137312
Weight
0.018 kg

Dimensions

Height
29 mm
Warranty Length
18 mth
Width
29 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZB5AZ905
  • ZBY2101
  • ZBYLEG503001
  • ZBYP2101
  • ZBPA
