Applications
XACA,CONTROL CIRCUIT,SINGLE SPEED
Contact Configuration
2 NO
Contact Rating
SLOW-BREAK
Operating Temperature
-25-70 Adegrees C
Standard
CSA C22.2 No 14,EN/IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS, 1 X 0.5...1 X 2.5 MMA WITHOUT CABLE END-SCREW CLAMP TERMINALS, 1 X 0.5...2 X 1.5 MMA WITH CABLE END
Type

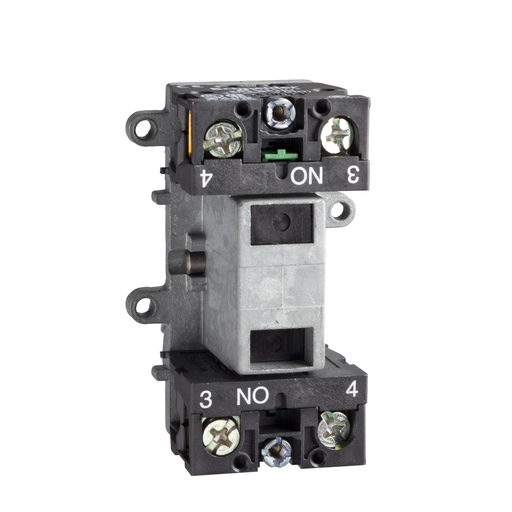

CONTACT BLOCK,DOUBLE,LATCHING
Wattage
40 Watt DC-13 1000000 CYCLES 60 CYC/MN 120 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C-48 Watt DC-13 1000000 CYCLES 60 CYC/MN 48 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C-65 Watt DC-13 1000000 CYCLES 60 CYC/MN 24 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C
