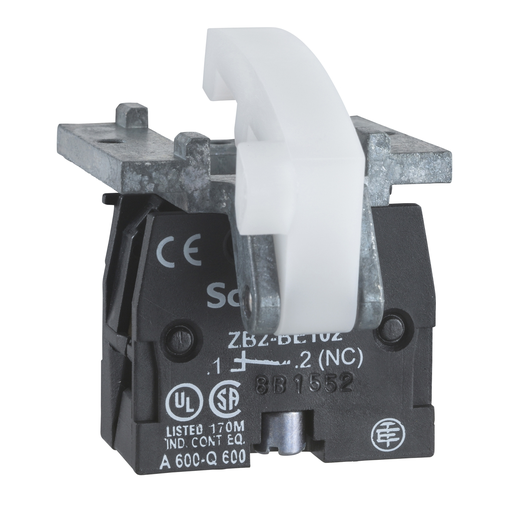

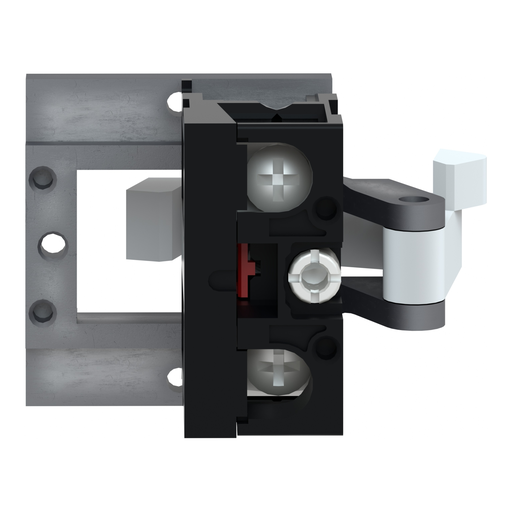

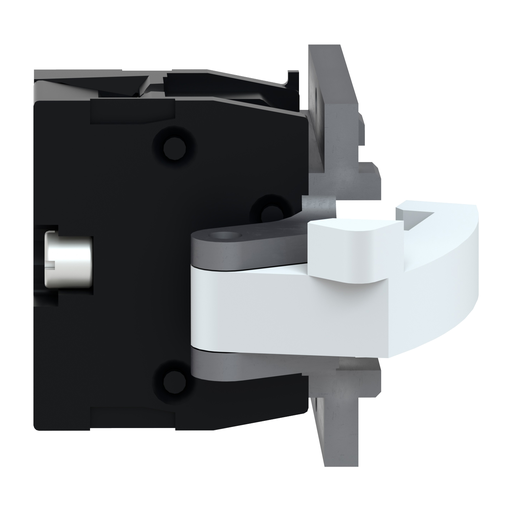

Product image for Square D XACS104 PENDANT STATION CONTACT 600VAC 10 A
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D XACS104 PENDANT STATION CONTACT 600VAC 10 A

Manufacturer: Square-D / Schneider | Catalog # XACS104 | Echo Electric Part # 177379
$54.69/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1
This Harmony XACS104 is a spring return contact block - 2 NC - base mounting. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

Technical Information

Amperage
10 Amp
Applications
Control circuit;XACA
Contact Configuration
2 NC
Contact Rating
Slow-break
Net Weight
0.045 kg
Operating Force
11 N
Operating Temperature
-25-70 Adegrees C
Standard
CSA C22.2 No 14,EN/IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS, 1 X 0.5...1 X 2.5 MMA WITHOUT CABLE END-SCREW CLAMP TERMINALS, 1 X 0.5...2 X 1.5 MMA WITH CABLE END
Type
Single;Contact block;Spring return
Wattage
40 Watt DC-13 1000000 CYCLES 60 CYC/MN 120 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C-48 Watt DC-13 1000000 CYCLES 60 CYC/MN 48 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C-65 Watt DC-13 1000000 CYCLES 60 CYC/MN 24 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C
