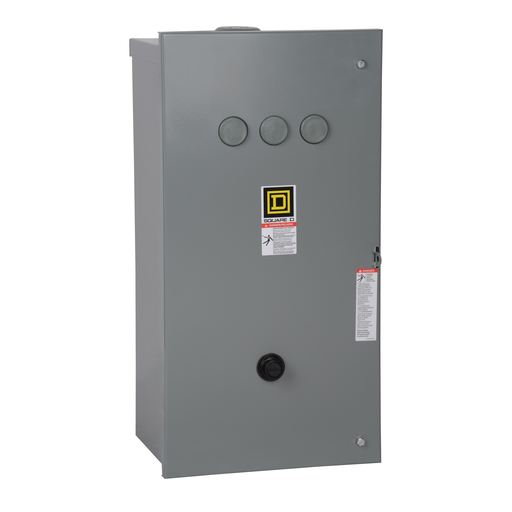

Product image for SQD 8536SEH6V03 STARTER 250VAC EXTR
Image thumbnail 0
Image thumbnail 1
Email

SQD 8536SEH6V03 STARTER 250VAC EXTR

Manufacturer: Square-D / Schneider | Catalog # 8536SEH6V03 | Echo Electric Part # 177554
$2,173.85/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
Used for full voltage starting and stopping AC squirrel cage motors

Technical Information

Amperage
90 Amp
Applications
USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS
Enclosure
NEMA 3R
NEMA Size
3
Number of Phases
2 Phase
Number of Poles
2 Pole
Power Supply
240VAC@60HZ - 220VAC@50HZ
Reset Type
MELTING ALLOY 2
Size
NOT NEMA RATED
TC Connection
BOX LUG
Type
NON-REVERSING STARTER
Voltage
600 Volt

Manufacturer Information

Brand
Square D
Sub Brand
S

General Product Info

12-Digit UPC
785901912736
GTiN
00785901912736
Product UPC
78590191273

Dimensions

Depth
8.62 Inch
Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Country of Origin
Mexico
  • Serviceable by replacing contacts and coils rather than replacing the entire product; simply service the part that is worn out.
  • Customizable with hundreds of combinations of contactors, starters, combination starters, pump panels, two-speed starters, reduced- voltage starters, enclosure options, and accessories
  • Simple catalog number for easy and fast ordering
  • Robust design and reliable build for long mechanical life and electrical endurance
  • Flexible with four overload relays: Motor Logic™ solid state, TeSys™ T communication solid state, Adapted Bimetal, and melting alloy types
  • Building Automation
  • Industrial Markets
  • Commercial Office Buildings
  • Infrastructure
  • Construction
  • Irrigation
