PHNX 2716101 DIKD 15 BU

Manufacturer: Phoenix Blocks | Catalog # 2716101 | Echo Electric Part # 177702
$18.28/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days

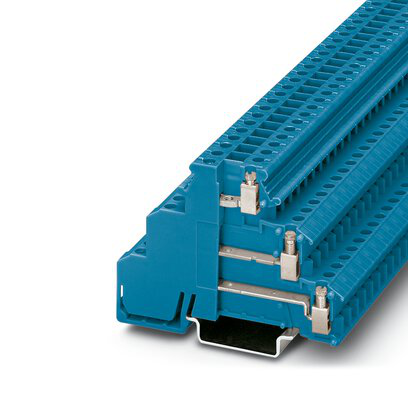

Sensor/actuator terminal block, nom. voltage: 250 V, nominal current: 24 A, connection method: Screw connection, 1st, 2nd and 3rd level, Rated cross section: 2.5 mm², cross section: 0.2 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: blue

Technical Information

Strip Length
8 mm

Manufacturer Information

Brand
Phoenix Products

General Product Info

12-Digit UPC
179180618142
Product UPC
17918061814

Dimensions

Length
72.5 mm
Width
6.2 mm
Features
  • The first initiator can also be connected to this three-conductor feed-through terminal block
  • The positive and negative potential can be supplied to the insertion bridges via this power terminal block
Approvals
  • cULus Recognized
  • EAC
  • CSA
  • UL Recognized
  • cUL Recognized
