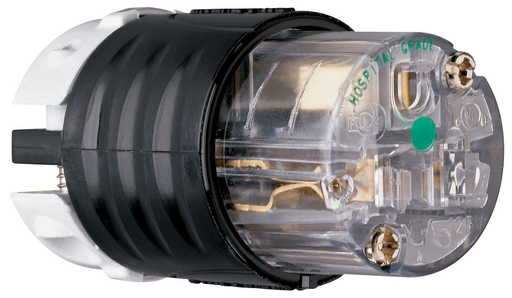

Product image for Pass & Seymour PS5269-XHG 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Black and Clear Nylon Polarized Straight Blade Connector
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour PS5269-XHG 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Black and Clear Nylon Polarized Straight Blade Connector

Manufacturer: Pass & Seymour / Legrand | Catalog # PS5269-XHG | Echo Electric Part # 177749
$46.12/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Straight Blade Connector 2-Pole 3-Wire 15A 125V Hospital Grade

Technical Information

Amperage
15 Amp
Applications
For Industrial use
Conductor Size
14-1/0 AWG
Grade
Hospital
Material
Nylon
NEMA
5-15R
Number of Conductors
3
Number of Poles
2 Pole
Number of Ports
2
Number of Wires
3 Wire
Size
2.64"
Type
Connector
Voltage
125 Volt
Wire Size
14 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007237290
Color
Black
GTiN
00785007237290
Product UPC
78500723729
UNSPSC
39121402

Dimensions

Depth
2.638 Inch
Height
1.516 Inch
Length
2.64 Inch
Width
1.358 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Unit arrives completely ready-to-wire, cuts installation time significantly.
  • Nylon housing provides impact and chemical resistance.
  • Rugged two-piece cord grip provides more uniform cord retention.
  • Internal dust shield keeps terminals free of contaminants.
  • Tri-drive assembly screws are standard on Hospital Grade plugs and connectors (angle plugs not included).
  • All 3-wire terminals located on the same plane, allows for quick wire termination from any angle.
  • Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity.
  • Cord-grip screws recessed to protect installer against screwdriver head slippage.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • Federal Spec Listed
  • cULus Listed
