3M 7625-T-110 Cold Shrink 3 Terms/Kit Non-Skirted Termination Kit

Manufacturer: 3M | Catalog # 7000006103 | Echo Electric Part # 177868
$86,247.97/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
14 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet Safety Data Sheet Product Catalog Page
3M™ Cold Shrink QT-III Termination Kits offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. The 3M™ Cold Shrink QT-III Termination Kit 7625-T-110 has a conductor size range for 5 kV: 700-1500 kcmil, 8 kV: 600-1250 kcmil and 15 kV: 500-1000 kcmil.

Technical Information

Applications
For Terminating Solid Dielectric Shielded Power Cable, Tape Shield, Wire Shield and UniShield® Constructions, Free-Hanging or Bracket-Mounting Arrangements, Compact Design Provides for Easier Installation in Restricted Spaces, Indoor and Protected Areas
Cable Type
Tape Shield; UniShield(R); Wire Shield
Conductor Size
500-1500 kcmil
Indoor Outdoor
Indoor Non-skirted
Insulation Diameter Range
26.67 mm
Material
Rubber
Number of Conductors
1
Shielding Type
Tape Shield,UniShield®,Wire Shield
Type
QT-III
Voltage
15 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007417620
GTiN
00054007417620
Product Series
7620-T
Product UPC
05400741762
Used With
1.05 - 1.8 in Cable, QL2-A-350-750, QL2-A-4/0-600 Lug

Certifications and Compliance

Country of Origin
USA
Features
  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for indoor applications
  • Non-tracking, molded, silicone rubber insulation offers durability

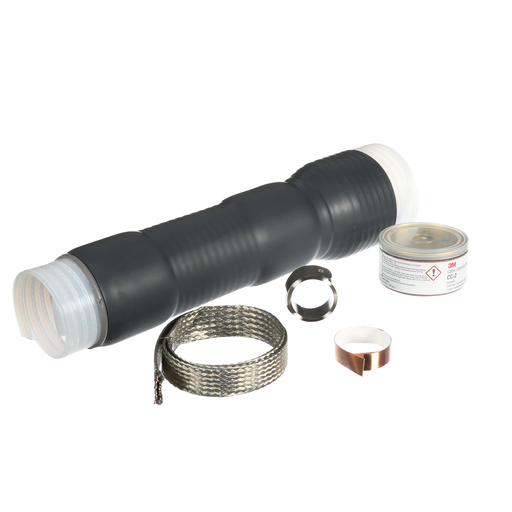

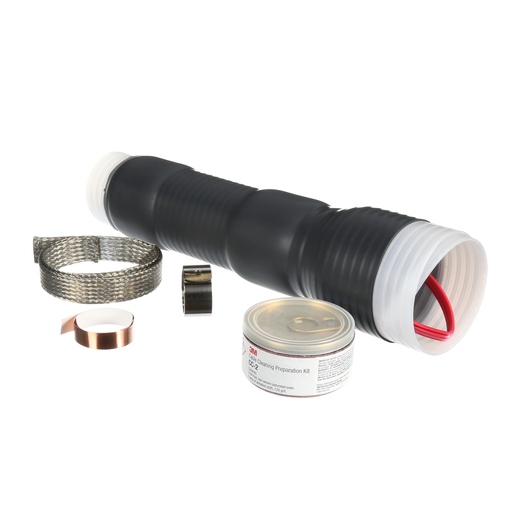

  • Includes 3 non-skirted, 1-piece, 3-phase, cold shrink terminations
