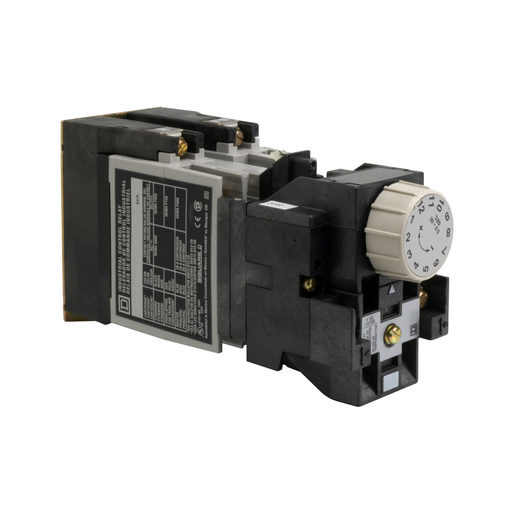

Product image for Square D 8501XO20XTE2V02 110/120 VAC 10/5 Amp 1NO 1NC Panel Mount AC Operated Industrial Timing Relay
Image thumbnail 0
Image thumbnail 1
Email

Square D 8501XO20XTE2V02 110/120 VAC 10/5 Amp 1NO 1NC Panel Mount AC Operated Industrial Timing Relay

Manufacturer: Square-D / Schneider | Catalog # 8501XO20XTE2V02 | Echo Electric Part # 177946
$633.37/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
Square D® 8501 Type X relays combine a rugged, heavy-duty design with modular construction for greater design flexibility.

Technical Information

Contact Configuration
2 NO 2 STANDARD CONTACT CARTRIDGES
Contact Rating
10 A AC-5 A DC,600 V AC
Current
10 Amp
Mounting Type
Panel
Number of Poles
2 Pole
Operating Temperature
-40-160 Adegrees F
Size
2.23 IN,3.5 IN,6.55 IN
TC Connection
AWG 18...AWG 12 COPPER,SCREW CLAMP TERMINALS
Type
RELAY,TIMING
Voltage
600 Volt

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901862154
GTiN
00785901862154
Product UPC
78590186215

Dimensions

Depth
6.55 Inch
Height
3-1/2 Inch
Warranty Length
18 mth
Width
2.23 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CSA LR60905 Class 3211 03,UL Listed File E78403 CCN NKCR
Country of Origin
Mexico
