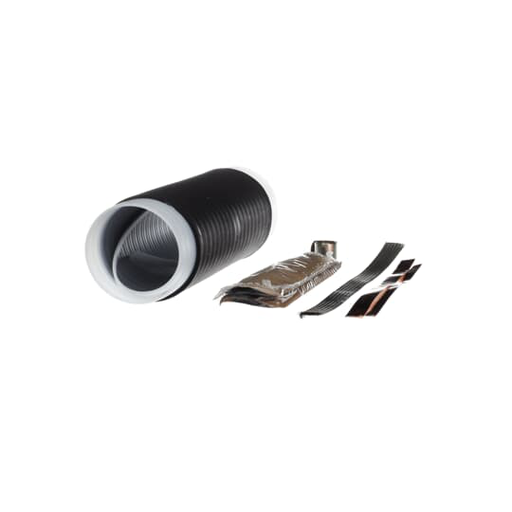

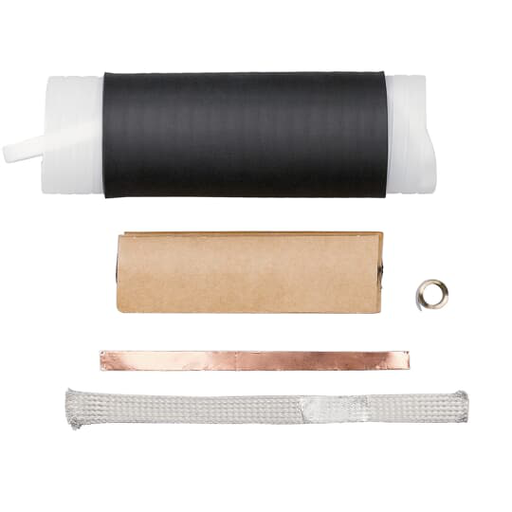

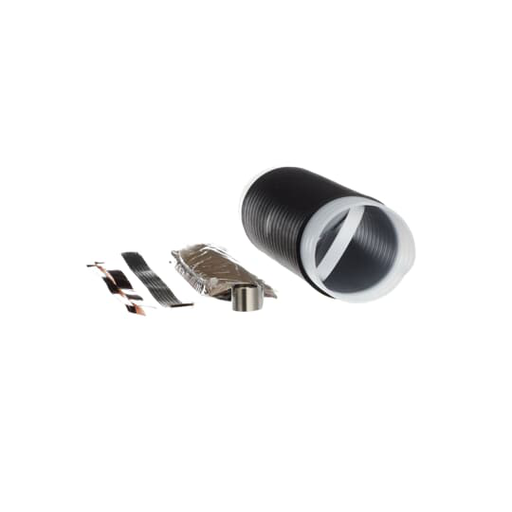

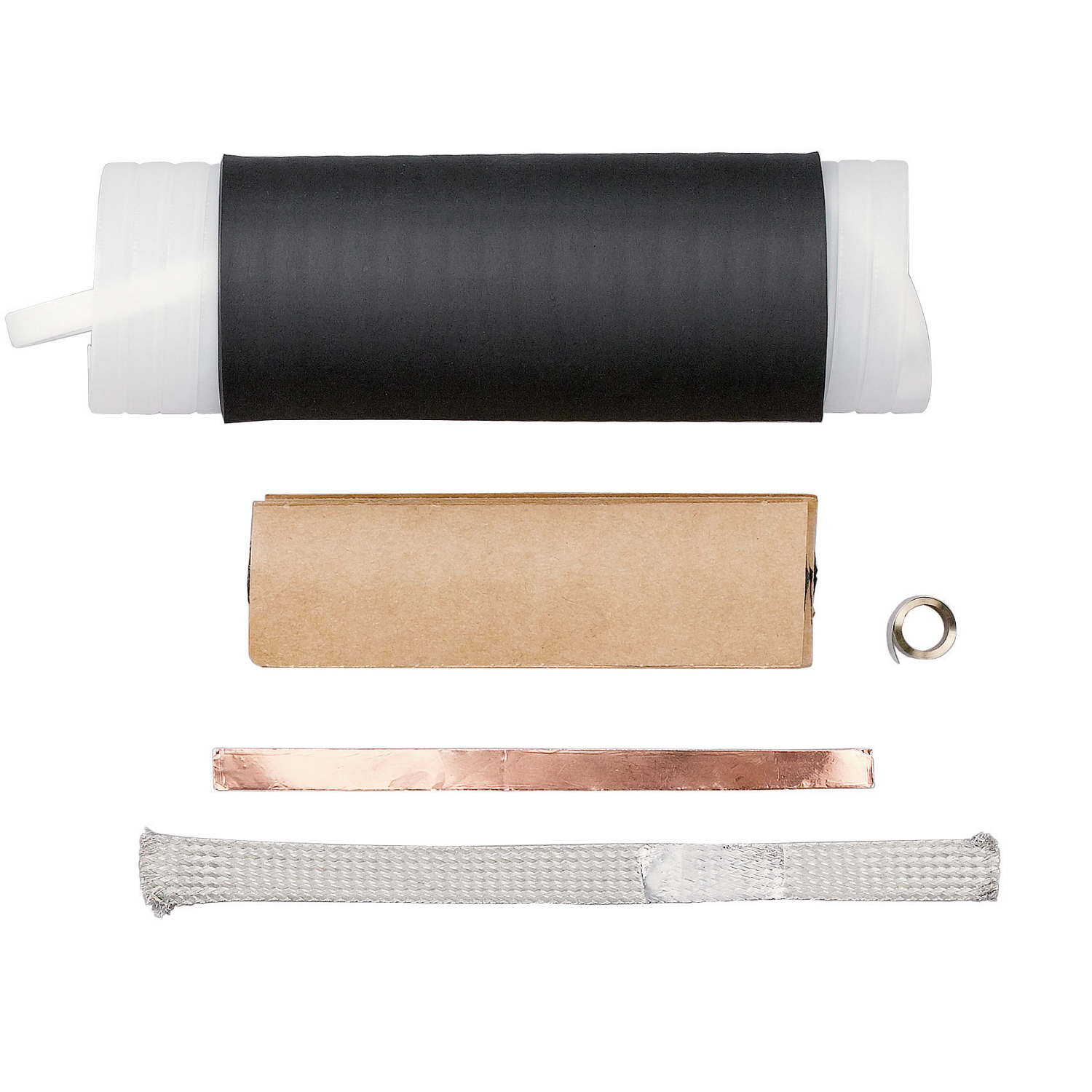

Product image for ABB Elastimold 200ECS-G3 Cold-Shrinkable Seal w/ Copper Braid & Constant Force Spring. Size Range .80" to 1.50" jacket diameters. Maximum installed diameter is approximately 2 inches.
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

ABB Elastimold 200ECS-G3 Cold-Shrinkable Seal w/ Copper Braid & Constant Force Spring. Size Range .80" to 1.50" jacket diameters. Maximum installed diameter is approximately 2 inches.

Manufacturer: Thomas & Betts Co | Catalog # 200ECS-G3 | Echo Electric Part # 178114
$159.92/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Cold-Shrinkable Seal with Copper Braid & Constant Force Spring. Size Range .80 inch to 1.50 inch jacket diameters. Maximum installed diameter is approximately 2 inches.

Technical Information

Applications
Elbows, cable joints and terminators have been disigned for use on XLP, EPR or similar solid dielectric insulated power cables.
Material
Copper
Temperature Rating
-40 to 65 degrees C
Type
Cold Shrink Seal

Manufacturer Information

Brand
Elastimold

General Product Info

12-Digit UPC
783786648399
GTiN
00783786648399
Product UPC
78378664839
Application
  • Elbows, cable joints and terminators have been disigned for use on XLP, EPR or similar solid dielectric insulated power cables.
Notes
  • Voltage rating equal to Elastimold product being used.
  • Size range .80\" to 1.50\" jacket diameters. Maximum installed diameter is approximately 2\".
  • To order the kits as separate items, use the catalog numbers shown in the table. Example: To order a cold-shrinkable tube as a separate item, use catalog numbers 200ECS. To order the kits as components of other items, add the suffix to the end of the catalog number. Example: To order a cold-shrinkable jacket seal as a component of an elbow kit, use catalog number 166LR-A5200-S.
  • Braid is equivalent to No. 6 copper rod for sizes FA thru HA and No. 2 copper rod for sizes HAB thru JB.
