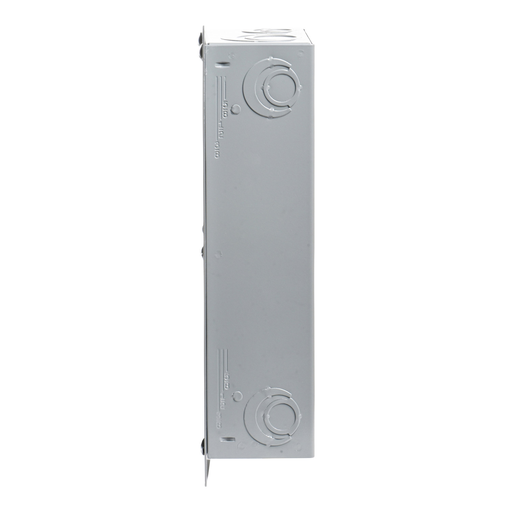

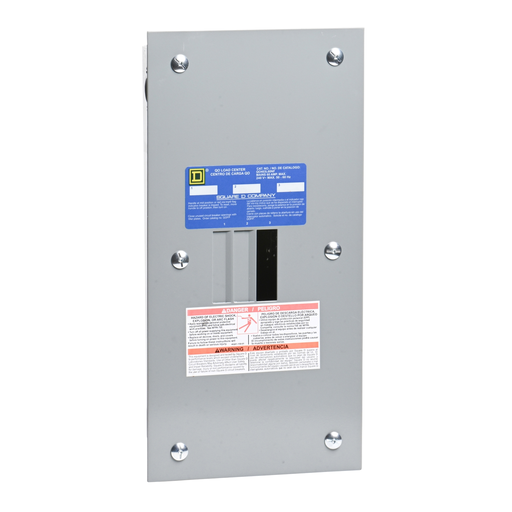

Square D QO403L60NF Load Center MLO 60A 120/240V 3Ph 3SP NEMA-1

Manufacturer: Square-D / Schneider | Catalog # QO403L60NF | Echo Electric Part # 178166
$156.16/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
7 available

For Delivery

Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
Industry leading offer since 1955 with features engineered for faster installation, reliability and quality. Contractors installing QO know it’s the World’s Finest!

Technical Information

Amperage
60 Amp
Applications
DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
Cable Size
#10 TO 6 AWG (CU)
Circuit Breaker Type
QO
Conductor Size
10-6 AWG
Cover Type
Flush Cover
Current
60 Amp
Enclosure
1
Enclosure Material
Steel
Interrupt Rating
65 kAIC
Line Rated Current
60 A
Material
Tin Plated Aluminium: Busbar
NEMA Size
1
Net Weight
2.800 kg
Number of Circuits
3
Number of Phases
3,4 Phase
Number of Spaces
3
Operating Temperature
23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
Short Circuit Current
65 kA
Short Circuit Current Ratng
65 kA
Surface Finish
Baked Enamel Gray
Type
Load Center
Voltage
120 Volt
Wire Size
AWG 10...AWG 6 copper

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901051695
Finish
Baked Enamel
GTiN
00785901051695
Product UPC
78590105169
Weight
2.800 kg

Dimensions

Depth
86 mm
Height
333 mm
Warranty Length
18 mth
Width
149 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • LK70AN
  • PK4GTA
  • PK4GTABP
  • QO115
  • QO2175SB
  • QOFP
  • LSDL
  • QO115CAFI
  • QO250PSPD
  • HEPD25
  • QO120
  • QO1SE
  • HEPD50
  • QO120CAFI
  • HEPD80
  • QO120DF
  • HEPD25MKF
  • QO120GFI
  • HEPD58MKF
  • QO215
  • QO220
  • QO225
  • QO230
  • QO240
  • QO250
  • QO260
  • QO2DTI
