Square D 9001SKR11U 30 mm Maintained Mushroom Push Button Operator

Manufacturer: Square-D / Schneider | Catalog # 9001SKR11U | Echo Electric Part # 178311
$151.20/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

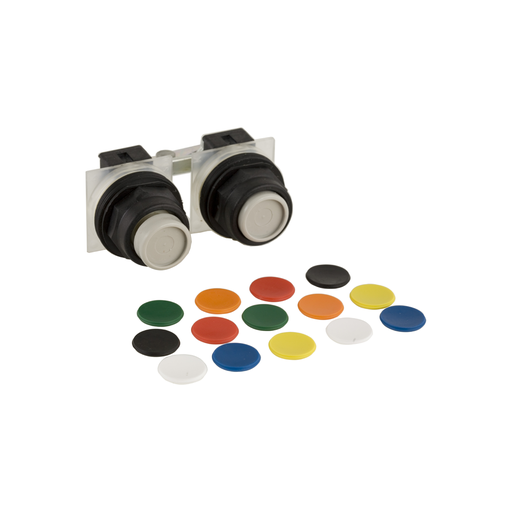

This push-button with full guard and set of 7 colors caps provides an ergonomic interface for controlling your machines Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)

Technical Information

Action
MAINTAINED
Actuator
MAINTAINED,MUSHROOM Ø 30 MM, UNMARKED
Bezel Material
Plastic
Contact Configuration
NO CONTACT BLOCKS
Enclosure
NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X
Net Weight
0.095 kg
Operating Temperature
-25-70 Adegrees C
Size
1.18 in
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,JIS C 4520,JIS C 852,UL 508
Storage Temperature
-40-70 degrees C
Type
Non-illuminated mushroom head push-button

Manufacturer Information

Brand
Square D
Sub Brand
9001SK

General Product Info

12-Digit UPC
785901546634
Environmental Conditions
WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTiN
00785901546634
Product UPC
78590154663
Weight
0.21 lb

Dimensions

Height
45 mm
Warranty Length
18 mth
Width
46 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA LR25490 Class 3211 03,NEMA,UL 508,UL Listed File E78403 CCN NKCR
Country of Origin
Mexico
