PHNX 3050015 QTCU 1 5

Manufacturer: Phoenix Blocks | Catalog # 3050015 | Echo Electric Part # 178419
$3.11/ea
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days

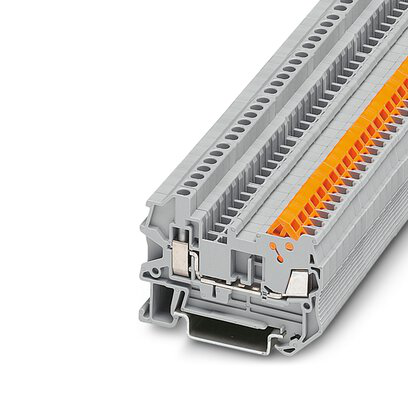

Feed-through terminal block, nom. voltage: 800 V, nominal current: 17.5 A, 1 level, connection method: Quick connection, Rated cross section: 1.5 mm², cross section: 0.25 mm² - 1.5 mm², connection method: Screw connection, Rated cross section: 1.5 mm², cross section: 0.14 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, color: gray

Technical Information

Mounting Type
NS 35/7
Strip Length
9 mm

Manufacturer Information

Brand
Phoenix Products

General Product Info

12-Digit UPC
017918975722
Color
Gray

Dimensions

Length
58.8 mm
Width
5.2 mm

Certifications and Compliance

Country of Origin
China
Features
  • The hybrid versions combine the advantages of the different connection technologies
  • The time-saving QUICKON fast connection is used on the control cabinet side
  • The screw connection is used on the connection side
Approvals
  • EAC
  • cULus Recognized
  • EAC Ex
  • IECEx
  • DNV GL
  • ATEX
  • CSA
  • UL Recognized
  • cUL Recognized
