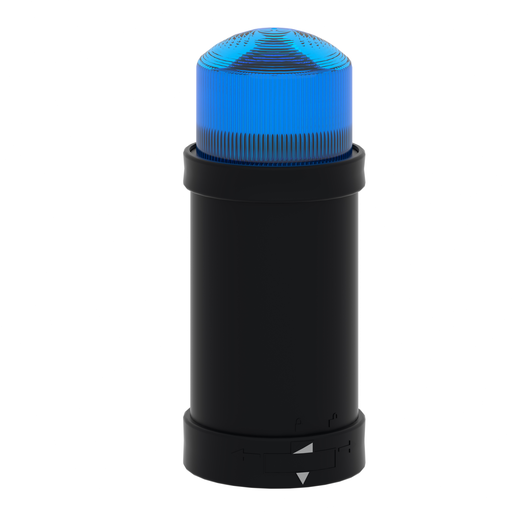

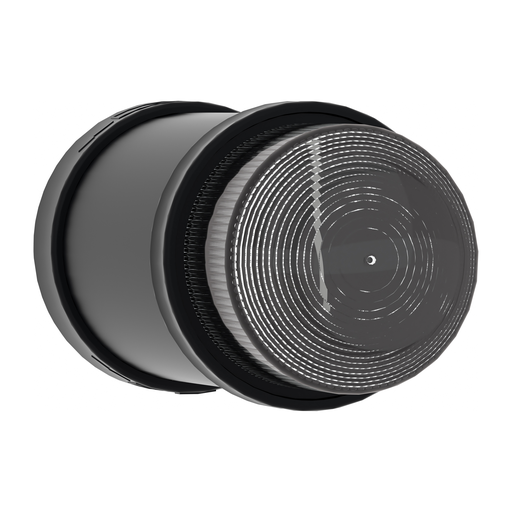

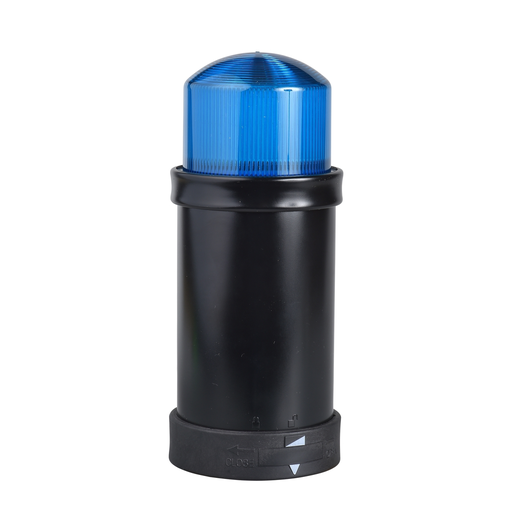

Product image for Square D XVBC8B6 70 mm 24 VDC 850 mA 10 W Blue Polycarbonate Strobe LED Beacon Lens Unit
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D XVBC8B6 70 mm 24 VDC 850 mA 10 W Blue Polycarbonate Strobe LED Beacon Lens Unit

Manufacturer: Square-D / Schneider | Catalog # XVBC8B6 | Echo Electric Part # 178492
$494.24/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This blue illuminated unit is designed to be connected with base to create complete tower light. Its flash discharge tube offers a strobe light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Technical Information

Amperage
< 1300 MA AC-< 850 MA DC
Current
1300 mA
Enclosure
IP65 ON FIXING BASE XVBZ0. IEC 60529-IP66 ON BASE UNIT IEC 60529,NEMA 4X UL 508 INDOOR)
Lens Color
INTEGRAL FLASH DISCHARGE TUBE, BLUE
Light Source
Integral Flash Discharge Tube, Blue
Material
Polycarbonate
Net Weight
0.305 kg
Size
70 MM,70 MM,70 MM
Standard
EN/IEC 60947-5-1
Storage Temperature
-40-70 degrees C
Type
ILLUMINATED UNIT,INDICATOR BANK
Voltage
0.85...1.1 UN IEC 60947-5-1,24 Volt AC/DC

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XVBC

General Product Info

12-Digit UPC
785901368861
GTiN
03389110845693
Product UPC
78590136886
Weight
0.305 kg

Dimensions

Height
157 mm
Warranty Length
18 mth
Width
70 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA C22-2 No 14,EAC,UL 508
Country of Origin
Czechia
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
