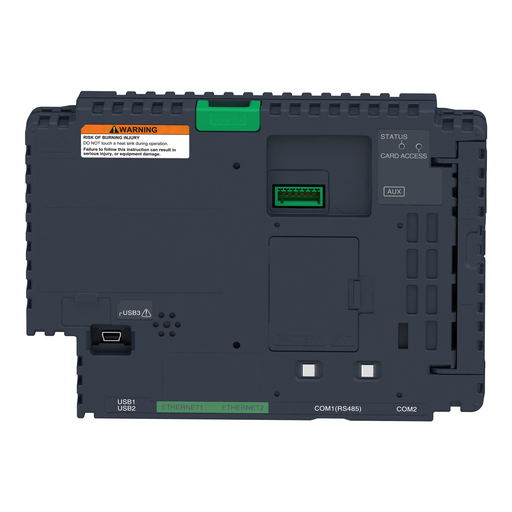

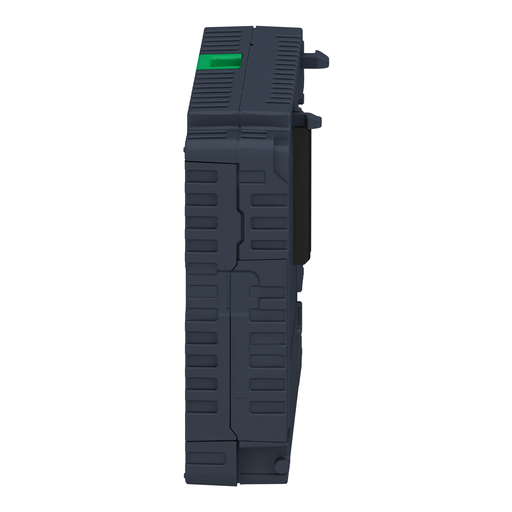

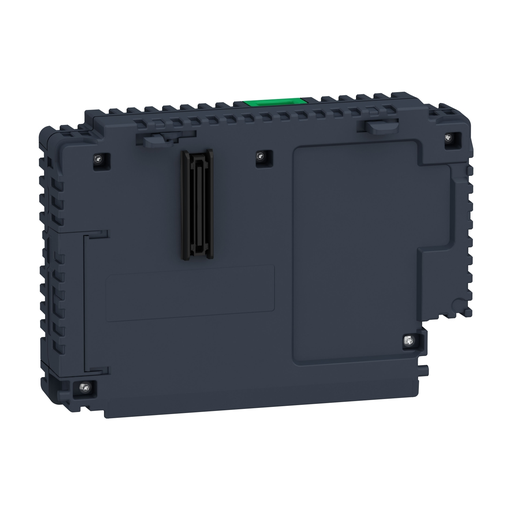

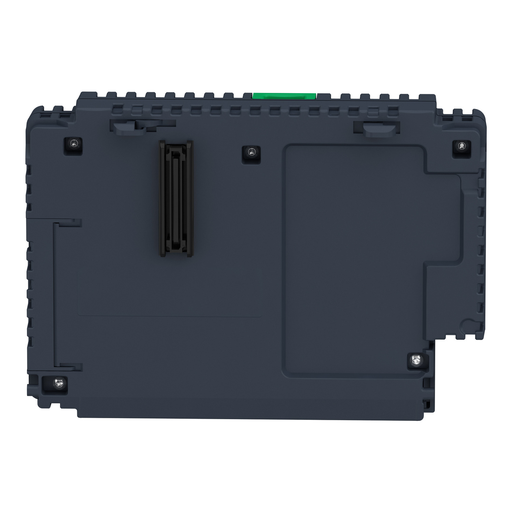

Product image for SQD HMIG3U Base unit, Harmony GTU,
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

SQD HMIG3U Base unit, Harmony GTU,

Manufacturer: Square-D / Schneider | Catalog # HMIG3U | Echo Electric Part # 178527
$1,974.55/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Magelis GTU premium box module has 256MB of RAM, a RISC CPU, 2 SD card slots, including a 1GB pre-installed card. It also has 2 host + 1 mini-B USB ports, 1 RS232C/RS422/RS485 port, 1 RS485 port and 1 Ethernet TCP/IP port. This universal premium box is designed for building advanced HMI systems together with Magellis universal GTU panels. It also offers a LED power indicator and a lock button to attach the box module and display. It has high performance RISC CPU for low latency display and automation. Its RS485 and Ethernet ports, ideal to supervise and control complex systems and machines.

Technical Information

Applications
MAGELIS GTU
Net Weight
0.9 kg
Power Supply
12...24 V DC POWER SUPPLY
Size
131 MM,188 MM,45 MM
Standard
ANSI/ISA 12-12-01,CSA C22.2 No 142,Class I Division 2 CSA C22.2 No 213,IEC 61132-2,UL 508
Storage Temperature
-20-60 degrees C
Type
BASE UNIT

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
606480687207
GTiN
03606480687204
Product UPC
78590111631
Weight
0.9 kg

Dimensions

Depth
45 mm
Height
131 mm
Warranty Length
18 mth
Width
188 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
ABS,ATEX,BV,CCS,CE,CUL,CULus,DNV,EAC,GL,IEC-Ex,KC,LR,RCM,RINA,UKCA,UKEX
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • BMXXCAUSBH018
  • HMIEELCZLSPAZZ
  • HMIZSD4G
  • HMIZGPWS
  • HMIZSD1GS
  • VJOCNTFREE30
  • HMIZGPWS2
  • VJOCNTGMPREM
  • HMIPELCZLGPAZZ
  • VJOCNTLML
  • VJOCNTLMM
  • HMIPELCZLSPAZZ
  • VJOCNTPACKENT
  • VJOCNTPACKESS
  • HMIPELCZLTPAZZ
  • VJOCNTSMBASIC
  • VJOCNTSMEXT5
  • HMIPEXCZLSRAZZ
  • VJOCNTSMEXT10
  • HMIRTWCZLSPAZZ
  • VJOCNTSTAT
Spare Part Products
  • HMIZGBAT
