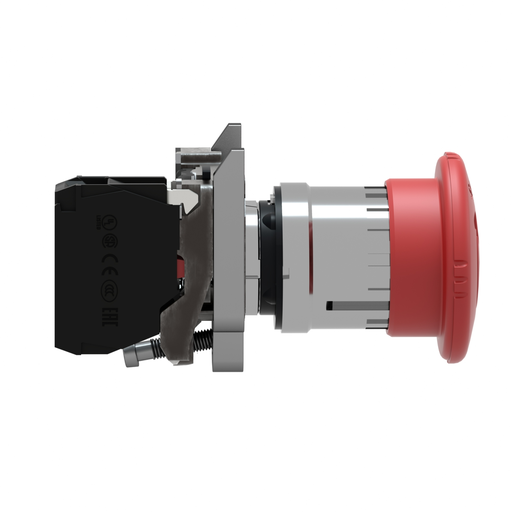

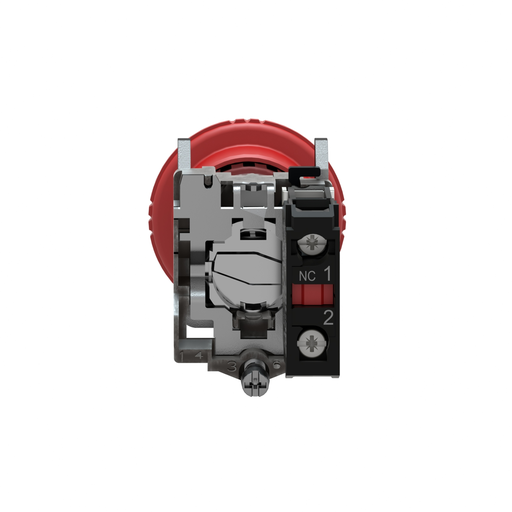

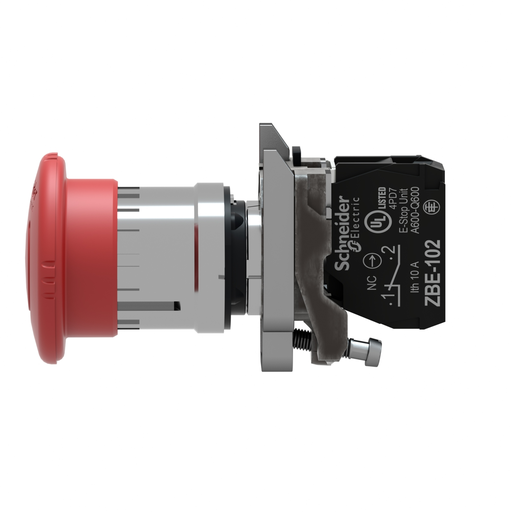

Product image for Square D XB4BS8442 Trigger Action Turn to Release Emergency Stop Button
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D XB4BS8442 Trigger Action Turn to Release Emergency Stop Button

Manufacturer: Square-D / Schneider | Catalog # XB4BS8442 | Echo Electric Part # 178564
$165.04/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony XB4 emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched turn to release mechanism. It has a metal bezel. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.

Technical Information

Amperage
3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Applications
XB4
Bezel Material
Chromium Plated Metal
Contact Material
Silver Alloy
Head Type
Standard
Net Weight
0.118 kg
Operating Temperature
-40-70 Adegrees C
Size
22 MM,40 MM,47 MM,82 MM
Standard
CSA C22.2 No 14,IEC 60204-1,IEC 60364-5-53,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,IEC 60947-5-5,ISO 13850,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
Type
EMERGENCY SWITCHING OFF PUSH-BUTTON-EMERGENCY STOP PUSH-BUTTON,TRIGGER ACTION AND MECHANICAL LATCHING

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XB4

General Product Info

12-Digit UPC
606480625056
Color
Red
Environmental Conditions
NEMA 13-NEMA 4X
Finish
Chromium
GTiN
03606480625053
Product UPC
78590197962
Shape
Round
Weight
0.118 kg

Dimensions

Depth
82 mm
Height
47 mm
Width
40 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZBZ1605
  • ZBY9330T
  • ZBY9140T
  • XAPK1501
Cross Sell Products
  • XAPD1501
Spare Part Products
  • ZB4BZ102
  • ZB4BS844
