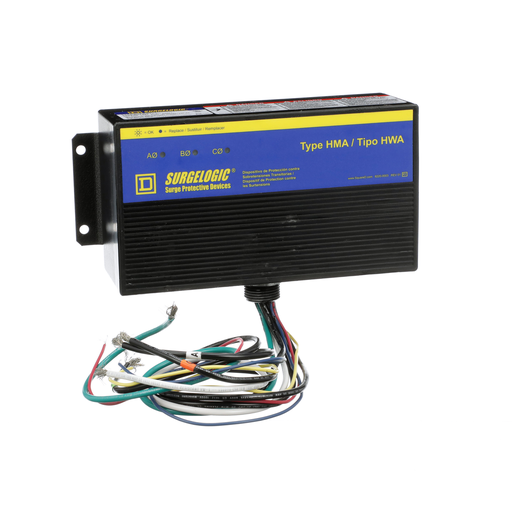

SQD TVS4HWA80X Surge protection dev

Manufacturer: Square-D / Schneider | Catalog # TVS4HWA80X | Echo Electric Part # 178603
$1,103.92/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
The HWA Series are surge suppressors and noise filters in a compact package. HWA surge protective devices are nipple mounted, parallel connected suppressors with different voltage configurations, including delta. TVS4HWA80X is three phase, four wire, 480Y/277VAC with an 80kA surge current. The surge suppressors use three pole spaces in a QO or Homeline load center, or NQ panelboard. The devices are NEMA 4X rated, allowing either indoor or outdoor installation. The devices comply with UL and CSA standards.

Technical Information

Applications
Bottom of enclosure
Enclosure
4X
Enclosure Material
Plastic
Mounting Type
Flush Fixing Kit,Surface
NEMA Size
4X
Nominal Discharge Current
20 kA
Number of Phases
3 Phase
Operating Temperature
65-65 degrees C
Size
33.6 in
Standard
CSA C22.2 No 8:1986,UL 1283:ed. 5,UL 1449:ed. 4
TC Connection
Wire phase and neutral AWG 10 copper;Wire ground AWG 10 copper;Wire dry contacts AWG 22 copper
Type
Surge protection device;4-wire
Voltage
277 Volt

Manufacturer Information

Brand
Square D
Sub Brand
HWA

General Product Info

12-Digit UPC
785901406235
GTiN
00785901406235
Product UPC
78590140623

Dimensions

Cable Length
33.6 in
Depth
79 mm
Height
122 mm
Warranty Length
10 yr
Width
219 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
USA
