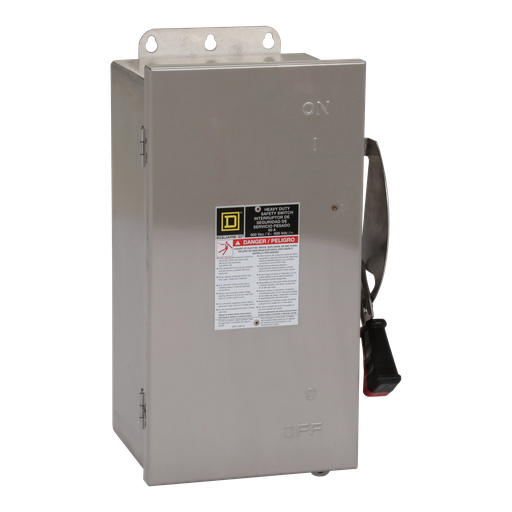

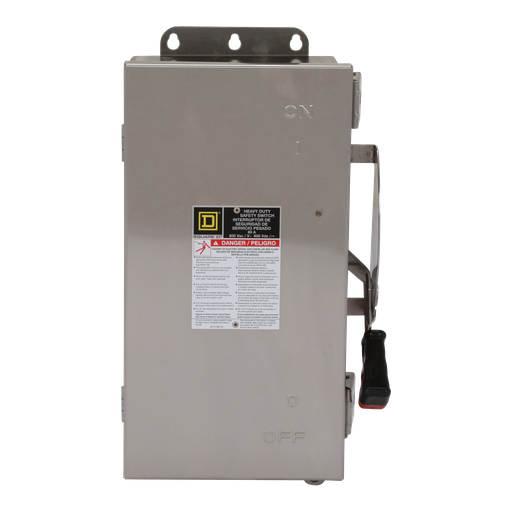

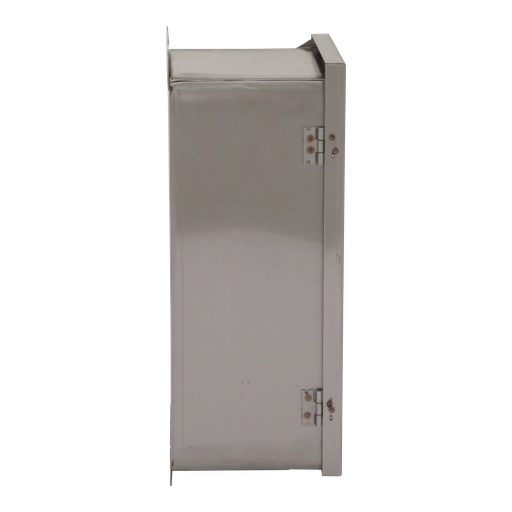

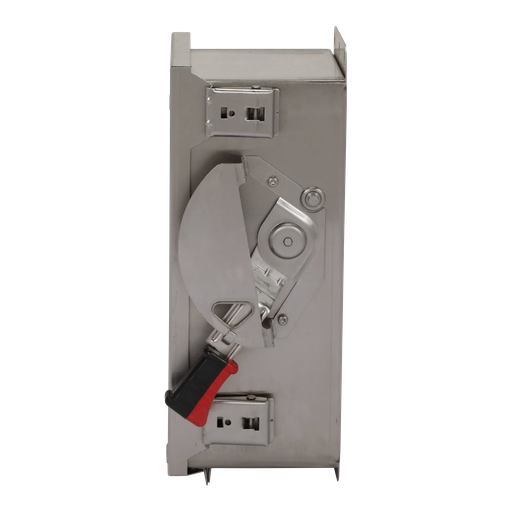

Square D HU362DSEI 600 VAC 60 Amp 3-Pole Non-Fusible Heavy Duty Safety Switch

Manufacturer: Square-D / Schneider | Catalog # HU362DSEI | Echo Electric Part # 178683
$2,415.33/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs.

Technical Information

Amperage
60 Amp
Applications
HEAVY DUTY
Conductor Size
12-3 AWG (AL)/14-3 AWG (CU)
Contact Configuration
1 NO/1 NC
Current
60 Amp
Disconnect Type
Non-fusible disconnect
Duty Rating
Heavy duty
Enclosure
4,4X,5
Enclosure Material
Stainless Steel
Enclosure Rating
4, 4X, 5
Line Rated Current
60 A
Material
Stainless Steel
Mounting Type
Surface
NEMA Size
4,4X,5
Net Weight
9 kg
Number of Phases
3 Phase
Number of Poles
3 Pole
Size
10.81 IN,16.87 IN,6.97 IN
TC Connection
LUGS
Type
SINGLE THROW SAFETY SWITCH,NON-FUSIBLE DISCONNECT
Voltage
600 Volt
Wire Size
AWG 14...AWG 3 copper;AWG 12...AWG 3 aluminium

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901156581
Environmental Conditions
RAINPROOF, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTiN
00785901156581
Product UPC
78590115658
Weight
19.84 lb

Dimensions

Depth
6.97 Inch
Height
16.87 Inch
Warranty Length
18 mth
Width
10.81 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E2875
Country of Origin
USA
