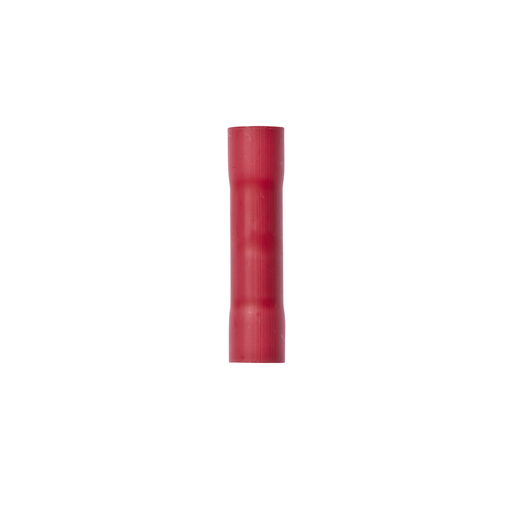

3M MV8BCX 10/Bottle Vinyl Insulated Butt Connector

Manufacturer: 3M | Catalog # 7000149333 | Echo Electric Part # 178716
$315.96/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Butt Connector is used to connect two single wires making an in-line splice. This butt connector is vinyl insulated and uses chamfered barrel ends to provide fast easy wire insertion from both ends and a built in wire stop for correct positioning. It must be crimped at ends. 3M™ Scotchlok™ Butt Connectors are UL Recognized and CSA certified.

Technical Information

Barrel Length
0.38 in
Barrel Type
Brazed
Conductor Size
8 AWG
Insulation Material
Vinyl
Material
PVC
Max Operating Temperature
105.0 degrees C
Standard
UL And CSA
Terminal Size
8 AWG
Terminal Style
Standard
Terminal Type
Butt
Type
Zero-Force Touch Button Accessory

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
638060414460
Color
Red
GTiN
00051128587737
Product UPC
63806041446

Dimensions

Length
1-1/2 Inch
Overall Length
1.5 in
Thickness
0.05 in

Certifications and Compliance

Country of Origin
USA
Features
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Built-in wire stop for correct positioning
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
