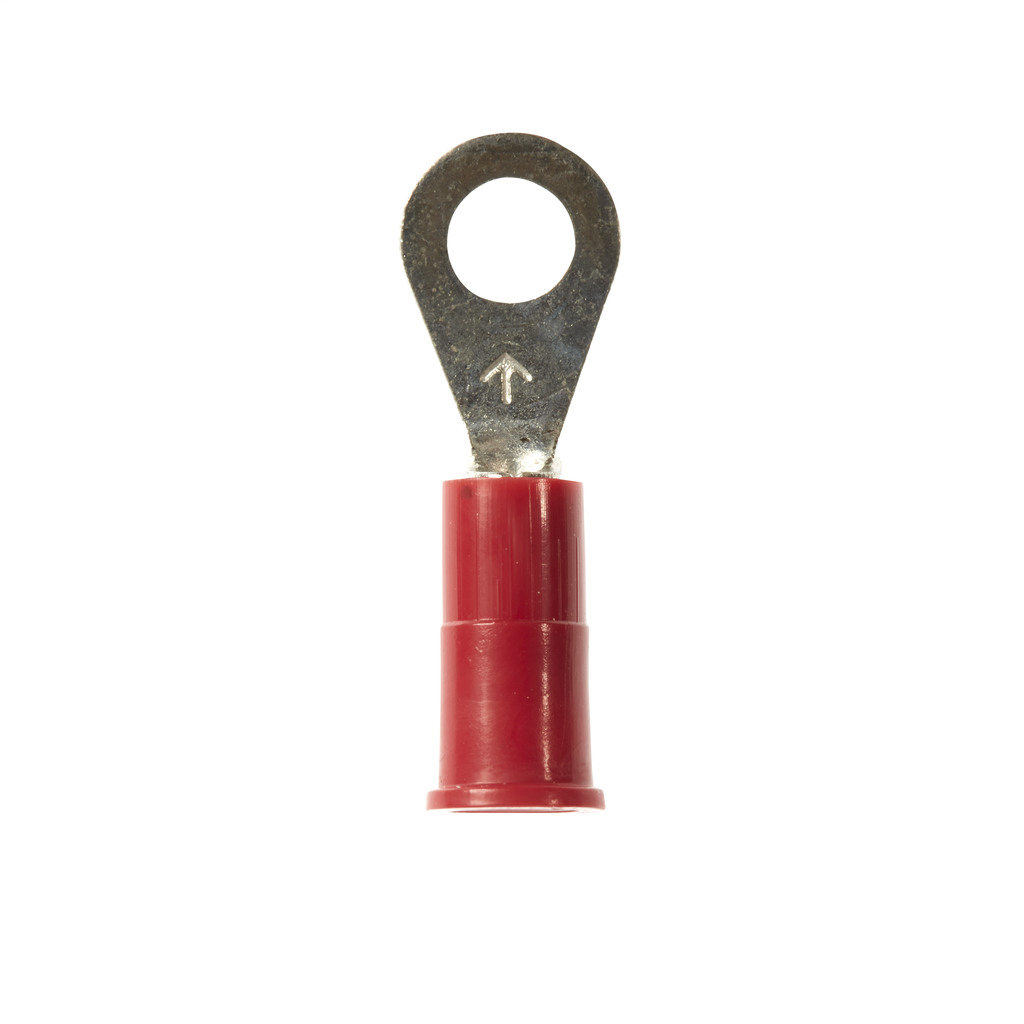

Product image for 3M MV18-8R/LX 100/Bottle Vinyl Insulated Ring
Image thumbnail 0
Image thumbnail 1
Email

3M MV18-8R/LX 100/Bottle Vinyl Insulated Ring

Manufacturer: 3M | Catalog # 7100008147 | Echo Electric Part # 178721
$94.22/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Color-Coded Large Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Diameter
0.07 in ID
Barrel Length
0.45 in
Barrel Type
Brazed
Conductor Size
22-18 AWG
Insulation Material
Vinyl
Material
PVC
Standard
UL And CSA
Stud Size
8
Temperature Rating
-40 to 105 degrees C
Terminal Size
22 - 18 AWG
Terminal Style
Standard
Terminal Type
Ring
Type
Short Sleeve, Standard
Voltage
600 Volt

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128587317
Color
Red
Finish
Tin Plated
GTiN
00051128587317
Product UPC
05112858731

Dimensions

Length
0.93 Inch
Overall Length
0.93 in
Thickness
0.03 in
Width
0.31 in

Certifications and Compliance

Country of Origin
USA
Features
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
