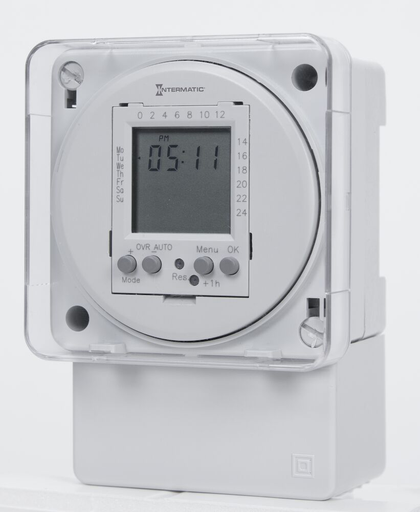

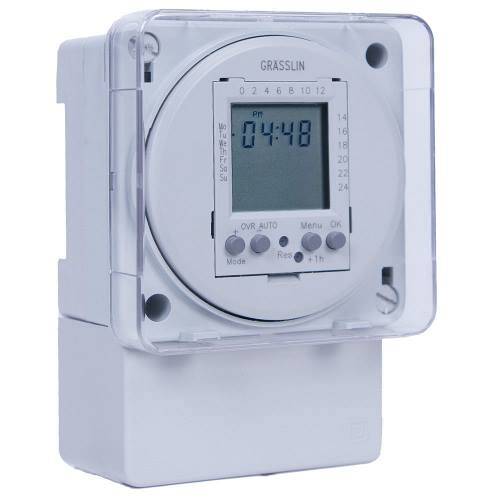

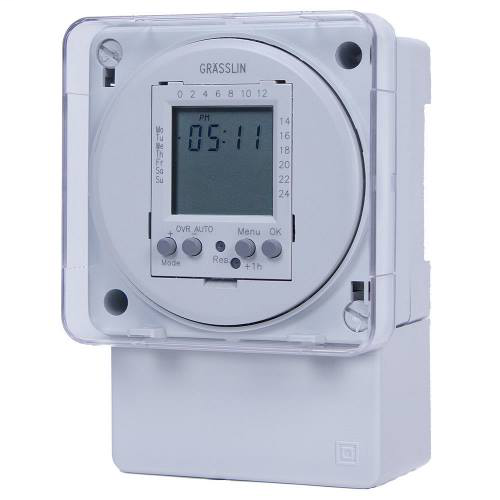

Product image for INT-MAT FM1D20A-120 24-Hour or 7-Da
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

INT-MAT FM1D20A-120 24-Hour or 7-Da

Manufacturer: Intermatic, Inc | Catalog # FM1D20A-120 | Echo Electric Part # 178755
$155.10/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
The FM1D20 Series Electronic Time Controls are for ventilating, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one-channel time switches are programmable for 24-hour or 7-day schedules. They are intended for either panel, surface, flush, or DIN rail mounting. Flush and surface/DIN rail (A & E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for installation and hard wiring.

Technical Information

Action
SPDT
Applications
Lighting, HVACR, Commercial, Industrial, Machinery, Pumps, Fans, HVAC
Connection Type
Screw Terminal
Contact Configuration
1 NO/1 NC
Contact Rating
16 AMP @ 277 VAC (Resistive NO), 12 AMP @ 120 VAC (Ballast NO), 8 AMP @ 240 VAC (Ballast NO), 16 AMP @ 277 VAC (Resistive NC), 8 AMP @ 24 VDC (NC)
Frequency
50/60 Hz
Input Voltage
120 V
Max Operating Temperature
131 degrees C
Min Operating Temperature
-13 degrees C
Mounting Type
Surface/DIN Rail Mount
Number of Circuits
1
Number of Poles
1 Pole
Operating Temperature
131 degrees F
Power Consumption
1.4 W
Size
4 HEIGHT X 2.83 WIDTH X 2.06 DEPTH IN, 102.5 HEIGHT X 72 WIDTH X 52 DEPTH MM
Standard
CULus Recognized E10694,California TITLE 24 Compliant,HVACR,Title CA 20 Listed
Switch Type
SPDT
TC Connection
Screw Terminal
Temperature Rating
-13 to 131 degrees F
Type
One Channel Electronic
Voltage
120 Volt
Wattage
1000 Watt

Manufacturer Information

Brand
Intermatic
Sub Brand
Grasslin

General Product Info

12-Digit UPC
078275121607
GTiN
00078275121607
Product UPC
07827512160

Dimensions

Depth
2.06 Inch
Height
4 Inch
Warranty Length
1 yr
Width
2.83 in

Certifications and Compliance

Country of Origin
China
Features
  • 24-Hour or 7-day applications
  • 20 Setpoint programs
  • Three preset adjustable block programs
  • Easy-to-follow menu driven programming
  • Manual override with status indication
  • Battery backup
  • Large LCD
  • Daylight Saving Time adjustment
  • A & E models come with clear dust cover
Compliance
  • RU Certification File Number -> #E10694
