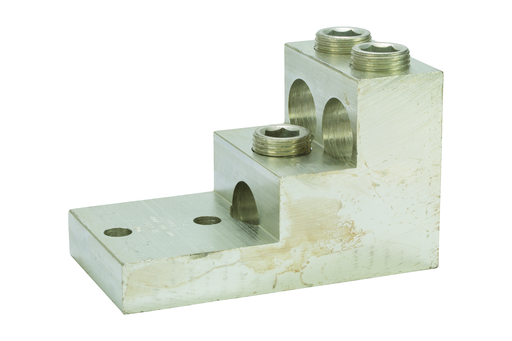

Product image for NSI 800T-3 Step Panel Lug (3)800-30
Email

NSI 800T-3 Step Panel Lug (3)800-30

Manufacturer: NSi | Catalog # 800T-3 | Echo Electric Part # 178813
$183.82/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet
3 Port Stacked Lug 800 - 300 MCM Stacked Lugs are large size set screw connectors with wire holes stacked on top of each other to minimize the width of the connector. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts (2000V max. per UL486B). UL486A/B Listed. Temperature rating 90 degrees C. Mounting hole spacing is NEMA standard of 1.75".

Technical Information

Applications
Wire Termination
Bolt Size
3/8 IN
Conductor Size
300-800 kcmil
Material
6061T-6 Aluminum Alloy
Max Temperature
90 degrees C
Mounting Hole
2
Number of Conductors
3
Number of Poles
1 Pole
Number of Ports
3
Standard
CULUS
Temperature Rating
90 degrees C
Type
Aluminum Stacked Lug
Voltage
600 Volt
Wire Size
300-800 kcmil

Manufacturer Information

Brand
NSI Industries
Sub Brand
Mechanical Connector

General Product Info

12-Digit UPC
662381001863
Color
Aluminum
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381001863
Product UPC
66238100186

Dimensions

Height
3 Inch
Length
4.91 Inch
Warranty Length
1 yr
Width
2.63 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Large size set-screw connectors with wire holes stacked on top of each other to minimize the width of the connector
  • Made of 6061T-6 aluminum alloy
  • Electro-tin plated for low contact resistance
  • For use with copper or aluminum conductors
Certifications and Standards
  • cULus
  • UL Listed
  • UL 486A-486B
