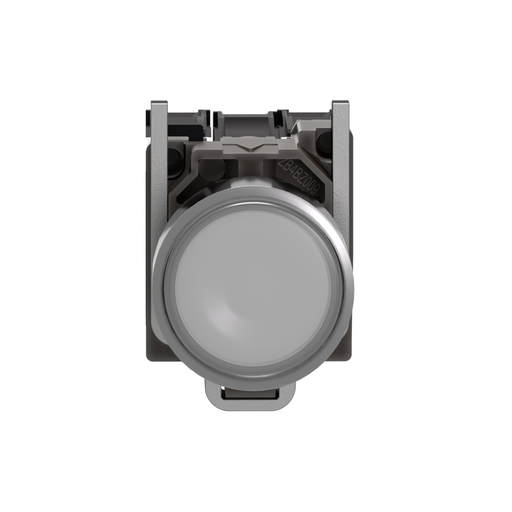

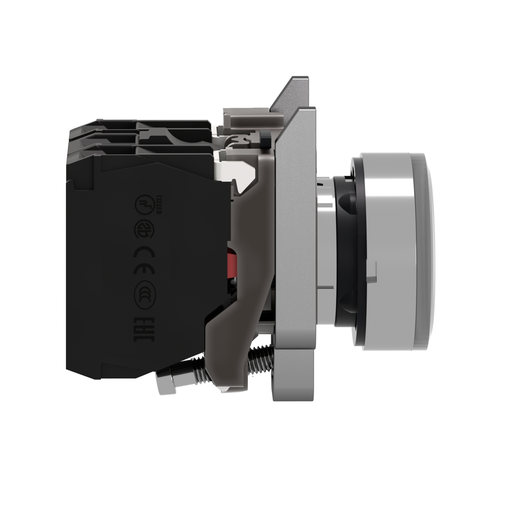

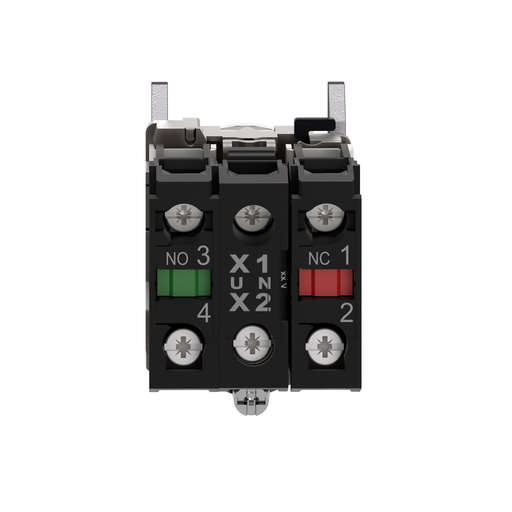

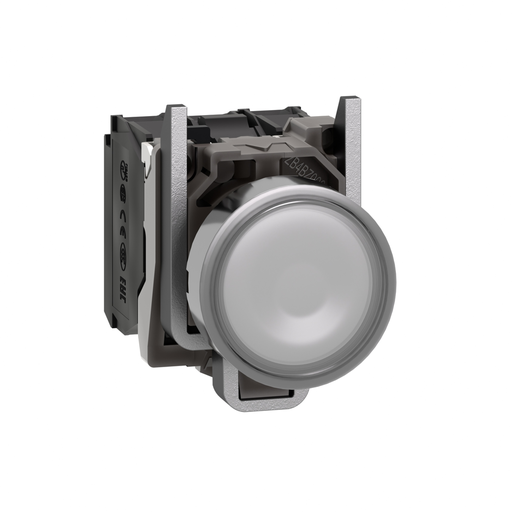

Product image for Square D XB4BW31G5 22 mm 120 VAC 14 mA 1NO 1NC White Round Momentary Flush Illuminated Push Button
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D XB4BW31G5 22 mm 120 VAC 14 mA 1NO 1NC White Round Momentary Flush Illuminated Push Button

Manufacturer: Square-D / Schneider | Catalog # XB4BW31G5 | Echo Electric Part # 179013
$157.75/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony XB4 illuminated modular white push button operates with a spring return mechanism, is supplied with 110V to 120V AC, uses an integral LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Technical Information

Action
MOMENTARY
Actuator
SPRING RETURN,WHITE FLUSH
Amperage
10 Amp
Bezel Material
Chromium Plated Metal
Contact Configuration
1 NO - 1 NC
Contact Material
Silver Alloy
Contact Rating
AC15 - DC13
Current
14 mA
Enclosure
NEMA 4/4X/13
Head Type
Standard
Indicator
WHITE
Light Source
Universal LED
Net Weight
0.097 kg
Operating Force
3.5 N
Operating Temperature
-40-70 Adegrees C
Size
22MM ROUND
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,IEC 60947-5-5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP
Type
ILLUMINATED PUSHBUTTON
Voltage
110...120 Volt AC 50/60 HZ

Manufacturer Information

Brand
Schneider Electric
Sub Brand
HARMONY

General Product Info

12-Digit UPC
389110892072
Color
White
Environmental Conditions
WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTiN
03389110892079
Product UPC
78590138144
Weight
0.097 kg

Dimensions

Depth
57 mm
Height
47 mm
Warranty Length
18 mth
Width
30 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZBYF2101
  • ZBYFP2101
  • ZB4BZ62
Cross Sell Products
  • XAPD1501
Spare Part Products
  • ZB4BW0G15
  • ZB4BW313
