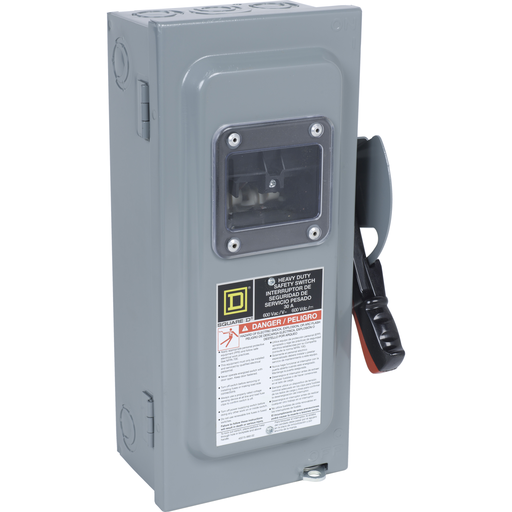

Square D HU361VW 600 VAC 30 Amp 3-Pole Non-Fusible Heavy Duty Safety Switch

Manufacturer: Square-D / Schneider | Catalog # HU361VW | Echo Electric Part # 179115
$339.76/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs.

Technical Information

Amperage
30 Amp
Applications
HEAVY DUTY
Conductor Size
12-6 AWG (AL)/14-6 AWG (CU)
Current
30 Amp
Duty Rating
Heavy duty
Enclosure
1
Enclosure Material
Stainless Steel
Enclosure Rating
1
Line Rated Current
30 A
Material
Steel
Mounting Type
Surface
NEMA Size
1
Net Weight
4 kg
Number of Phases
3 Phase
Number of Poles
3 Pole
Size
4.88 in
TC Connection
LUGS
Type
Non-fusible disconnect;Single Throw Safety Switch
Voltage
600 Volt
Wire Size
AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper
Wire Type
AWG 12...AWG 6 ALUMINIUM-AWG 14...AWG 6 COPPER

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901599173
Environmental Conditions
GENERAL PURPOSE (INDOOR)
GTiN
00785901599173
Product UPC
78590159917
Weight
8.82 lb

Dimensions

Depth
4.88 Inch
Height
14.6 Inch
Warranty Length
18 mth
Width
7.55 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E2875
Country of Origin
USA
