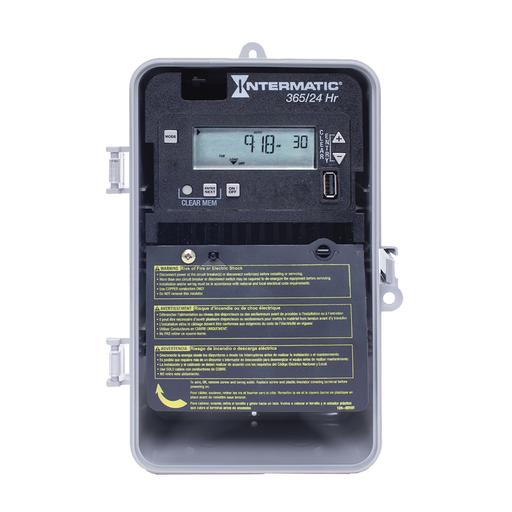

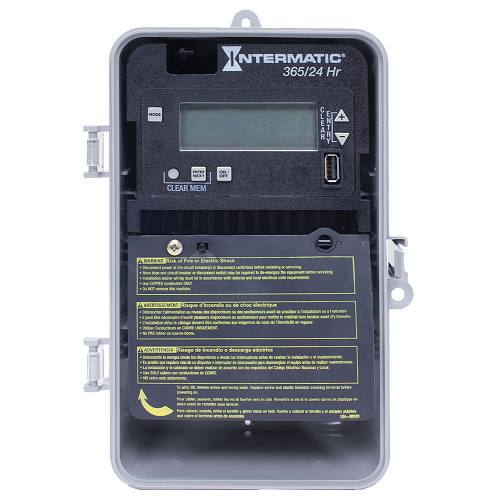

Product image for INT-MAT ET2115CP 24-Hour/365 Day 1-
Image thumbnail 0
Image thumbnail 1
Email

INT-MAT ET2115CP 24-Hour/365 Day 1-

Manufacturer: Intermatic, Inc | Catalog # ET2115CP | Echo Electric Part # 179130
$258.79/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
The ET2000 Series offers an easy-to-use interface, while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need of batteries, make this series ideal for nearly any application.

Technical Information

Action
SPDT
Amperage
30 Amp
Applications
Indoor Lighting Control,Machinery & Pump Controls,Timing/Scheduling ON/OFF
Conductor Size
14-8 AWG
Connection Type
Wire Lead
Contact Configuration
1 NO/1 NC
Contact Rating
20 AMP @ 120/240 VAC, 20 AMP @ 28 VDC (Resistive), 20 AMP @ 120/240 VAC (Inductive), 20 AMP @ 120/240 VAC (Magnetic Ballast), 10 AMP @ 120/277 VAC (Electronic Ballast)
Enclosure
Type 3R Plastic
Frequency
50/60 Hz
Max Operating Temperature
104 degrees F
Min Operating Temperature
-40 degrees C
Mounting Type
Wall Mount
Number of Circuits
1
Number of Poles
1 Pole
Operating Temperature
155 degrees F
Power Consumption
3 W
Standard
Meet Title 20/24 Compliance,UL Rating
Switch Type
SPDT
TC Connection
Wire Lead
Type
Electronic
Voltage
120-277 VAC
Wire Size
18-10 AWG

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275148000
Color
Gray
GTiN
00078275148000
Product UPC
07827514800

Dimensions

Depth
4 Inch
Height
10 Inch
Warranty Length
2 yr
Width
6.5 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Country of Origin
Mexico
Features
  • 100-hour supercapacitor eliminates the need for batteries.
  • Up to 96 set points or events.
  • Up to 50 holiday blocks with schedule capabilities.
  • Automatic input voltage selection from 120 to 277 VAC, 60 Hz.
  • Additional mode of operation turns the ON/OFF buttons into 2-hour overrides.
  • Configurable outputs allow the control of various voltages and applications.
  • Relays incorporate zero-crossing technology to extend the life of the control.
  • Non-volatile EEPROM memory protects programming indefinitely.
  • LED compatible.
  • USB port makes transferring and saving of schedules easy.
