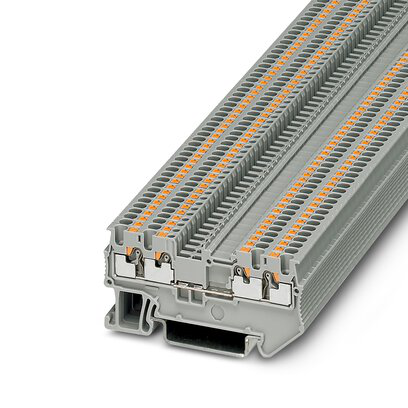

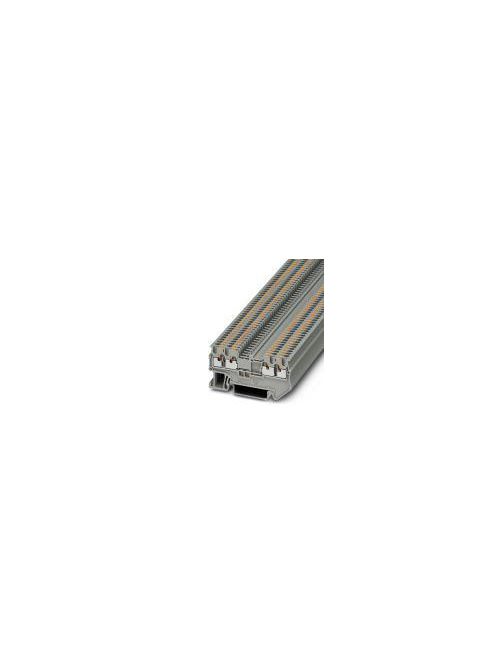

Product image for Phoenix Contact 3208197 500 Volt 17.5 Amp 26 to 14 AWG Gray Polyamide Push-In Connection Feed-Through Terminal Block
Image thumbnail 0
Image thumbnail 1
Email

Phoenix Contact 3208197 500 Volt 17.5 Amp 26 to 14 AWG Gray Polyamide Push-In Connection Feed-Through Terminal Block

Manufacturer: Phoenix Blocks | Catalog # 3208197 | Echo Electric Part # 179531
$3.05/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
150 available

For Delivery

Not in local stock *
Check another branch
Feed-through terminal block, nom. voltage: 500 V, nominal current: 17.5 A, connection method: Push-in connection, 1 level, Rated cross section: 1.5 mm², cross section: 0.14 mm² - 1.5 mm², mounting type: NS 35/7,5, NS 35/15, color: gray

Technical Information

Amperage
17.5 Amp
Applications
For Railway Industry, Machine Building, Plant Engineering, Process Industry
Conductor Size
26-16 AWG
Connection Type
Push-In
Power Rating
0.56 W
Strip Length
10 mm
Temperature Rating
-60 to 110 degrees C
Type
1-Row
Voltage
500 Volt

Manufacturer Information

Brand
Phoenix

General Product Info

12-Digit UPC
463565643288
Color
Gray
Product UPC
46356564328

Dimensions

Height
30.5 mm
Length
63.2 mm
Width
3.5 mm

Certifications and Compliance

Country of Origin
Germany
Features
  • In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
  • The compact design and front connection enable wiring in a confined space
  • The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
  • Tested for railway applications
Approvals
  • BV
  • VDE Zeichengenehmigung
  • EAC
  • cULus Recognized
  • EAC Ex
  • IECEx
  • LR
  • NK
  • ATEX
  • IECEE CB Scheme
  • DNV GL
  • ABS
  • CSA
  • UL Recognized
  • cUL Recognized
