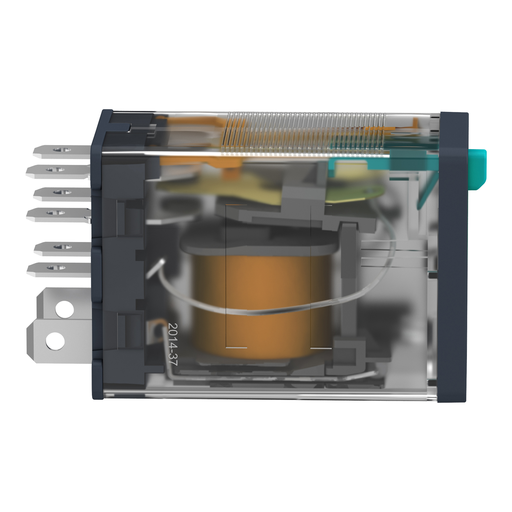

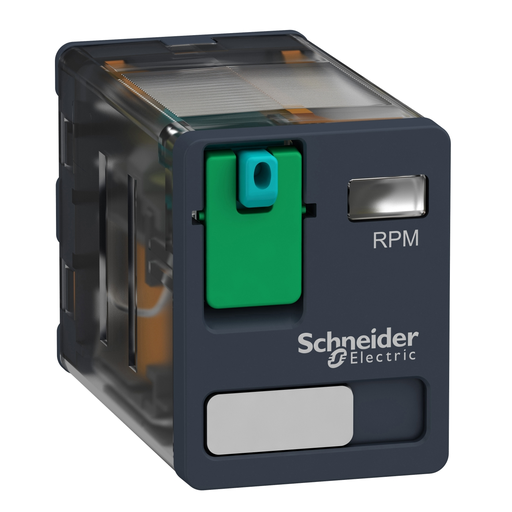

Product image for Square D RPM21BD 24 VDC 15 Amp 2NO 2NC Din Rail/Panel Mount Plug-In Relay
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D RPM21BD 24 VDC 15 Amp 2NO 2NC Din Rail/Panel Mount Plug-In Relay

Manufacturer: Square-D / Schneider | Catalog # RPM21BD | Echo Electric Part # 179618
$13.06/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony RPM power plug-in relay has a coil control voltage of 24V DC and has 1 changeover contact DPDT (double pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type enables easy installation and maintenance. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
15 Amp 250 V AC-15 Amp 28 V DC,15 Amp 277 V AC) UL-15 Amp 28 V DC) UL-15 Amp 250 V AC) NO IEC-15 Amp 28 V DC) NO IEC-7.5 Amp 250 V AC) NC IEC-7.5 Amp 28 V DC) NC IEC
Contact Configuration
2 C/O
Contact Material
Silver Alloy
Contact Rating
B300
Control Type
Lockable test button
Dielectric Strength
1500 V
Enclosure
IP 40 CONFORMING TO IEC/EN 60529
Line Rated Current
15 A
Net Weight
0.036 kg
Operating Cycles
1200,18000
Operating Temperature
-40-55 degrees C
Resistance
650 OHMS
Standard
CSA C22.2 No 14,IEC 61810-1,UL 508
Storage Temperature
-40-85 degrees C
TC Connection
FLAT/SPADE (FASTON TYPE)
Type
Plug-in relay;Flat

Manufacturer Information

Brand
Schneider Electric
Sub Brand
RPM

General Product Info

12-Digit UPC
389119401817
GTiN
03389119401814
Product UPC
78590144782
Weight
0.036 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,EAC,UL
Country of Origin
China
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • RPZF2
Cross Sell Products
  • RPM22BD
  • RPM23BD
  • RPM22P7
