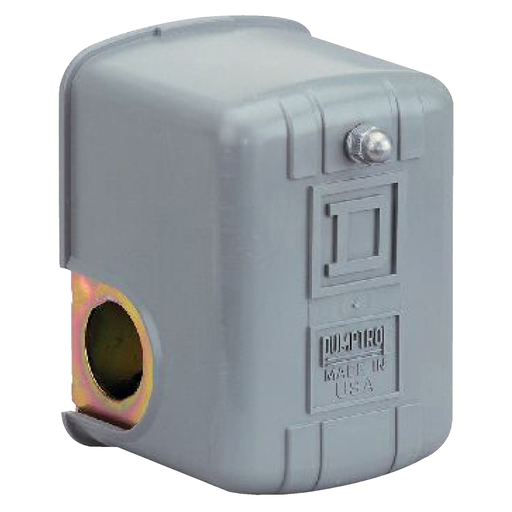

TES 9013FSW29J21 Square-D Pumptrol, water pump switch 9013FS, adjustable diff., 30 50 PSI

Manufacturer: TES ELECTRIC | Catalog # 9013FSW29J21 | Echo Electric Part # 179662
$78.25/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1
Square D Pumptrol, water pump switch 9013FS, adjustable diff., 30 50 PSI

Technical Information

Applications
1.5 KW 2 HP)230 V AC, 1 PHASE-1.1 KW 1.5 HP)115 V AC, 1 PHASE-1.5 KW 2 HP)115 V AC, 3 PHASE-2.2 KW 3 HP)230 V AC, 3 PHASE-0.75 KW 1 HP)460 V AC, 3 PHASE-0.75 KW 1 HP)575 V AC, 3 PHASE,CONTROL ELECTRICALLY DRIVEN WATER PUMPS,REGULATION BETWEEN 2 THRESHOLDS
Contact Configuration
2 NC, SNAP ACTION, DPST-DB, FORM YY
Enclosure
NEMA 3R UL 50
Material
Noryl
Net Weight
1 lb
Operating Cycles
10 cyc/mn
Operating Temperature
-33-257 Adegrees F
Standard
CE,NSF ANSI 61 Annex G,UL 508
Storage Temperature
-33-257 degrees F
Type
ADJUSTABLE DIFFERENTIAL,ELECTROMECHANICAL PRESSURE SWITCH

Manufacturer Information

Brand
Telemecanique
Sub Brand
9013FS

General Product Info

12-Digit UPC
785901848530
Environmental Conditions
RAINPROOF AND ICE PROOF (INDOOR/OUTDOOR)
GTiN
00785901848530
Product UPC
78590184853
Weight
1 lb

Dimensions

Depth
3.76 Inch
Height
2.8 Inch
Warranty Length
18 mth
Width
2.78 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA File LR25490,UL Listed File E12158
Country of Origin
Mexico
