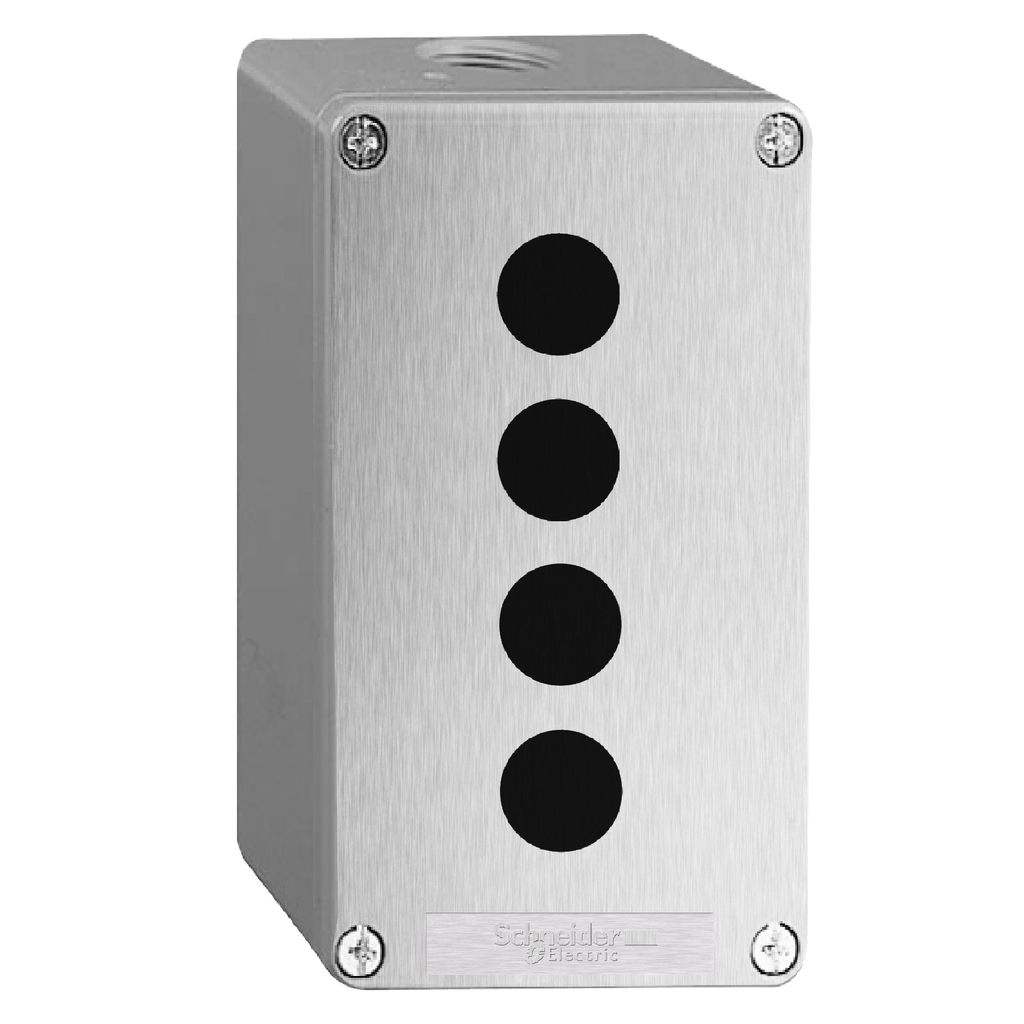

XAPG 22mm enclosures are for industrial applications. These empty enclosures can be used with push buttons and pilot lights from the XB4 metal or XB5 plastic push button ranges. This grey die cast zinc alloy enclosure has openings for four operators. The spacing of the operator holes allows the enclosure horizontally and have enough electrical clearance to mount the operators properly. The enclosure is NEMA 4 and 13 rated. Enclosure is 6.89 inches tall, 3.15 inches wide and 2.03 inches deep. The relay weighs 1.90 lbs. "The enclosure is made of die-cast zinc and available in grey color. Its dimensions are 80mm (width) x 51.5mm (depth) x 175mm (height). It weighs 0.86kg." "It is suitable for automotive, textiles, timber, energy distribution, public works, building and airport applications." "It is compatible with the XB4 range Ø 22mm control and signaling units." "It is a horizontal mounted device." "Harmony XAM, XAP industrial IP67 enclosures combines simple installation, configuration flexibility and robust construction." "The Harmony XAM, XAP range of insulated or metal enclosures designed for use in severe environments."
