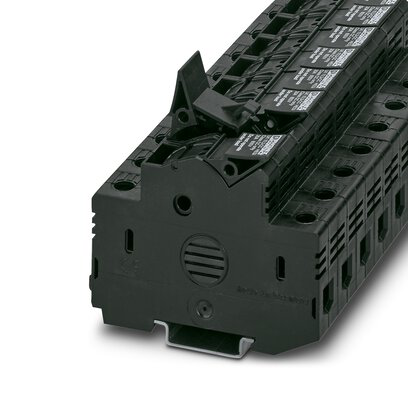

Product image for Phoenix Contact 3048593 690 Volt 32 Amp 16 to 4 AWG Black Polyamide Screw Connection Class CC Fuse Modular Terminal Block
Email

Phoenix Contact 3048593 690 Volt 32 Amp 16 to 4 AWG Black Polyamide Screw Connection Class CC Fuse Modular Terminal Block

Manufacturer: Phoenix Blocks | Catalog # 3048593 | Echo Electric Part # 179922
$63.71/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
25 available

For Delivery

Not in local stock *
Check another branch
Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: Class CC, nom. voltage: 600 V, nominal current: 30 A, connection method: Screw connection, Rated cross section: 25 mm², cross section:  1.5 mm²- 25 mm², mounting type: NS 35/7,5, NS 35/15, color: black

Technical Information

Current
30 Amp
Strip Length
12 mm

Manufacturer Information

Brand
Phoenix Products

General Product Info

12-Digit UPC
463561160086
Product UPC
46356116008

Dimensions

Length
81 mm
Width
36 mm

Certifications and Compliance

Country of Origin
Germany
Features
  • Fuse holder for fuses up to 600 V
  • For 10 x 38 CC fuse-links in accordance with UL 4248-4
  • 2-pos. blocked version
  • Easy to bridge
Approvals
  • cULus Listed
  • EAC
  • CSA
  • UL Listed
  • cUL Listed
