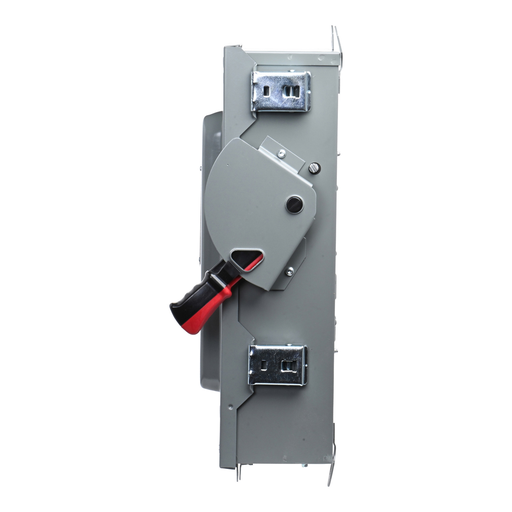

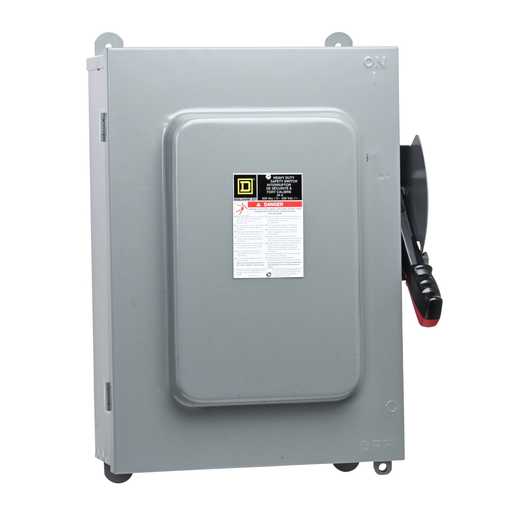

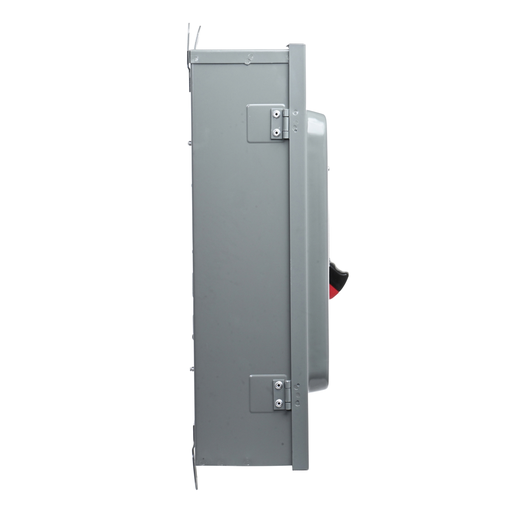

Product image for Square D HU461AWK 600 VAC 30 Amp 4-Pole Non-Fusible Heavy Duty Safety Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D HU461AWK 600 VAC 30 Amp 4-Pole Non-Fusible Heavy Duty Safety Switch

Manufacturer: Square-D / Schneider | Catalog # HU461AWK | Echo Electric Part # 179923
$872.11/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs.

Technical Information

Amperage
30 Amp
Applications
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Conductor Size
12-6 AWG (AL)/14-6 AWG (CU)
Current
30 Amp
Duty Rating
Heavy duty NULL
Enclosure
12,3R
Enclosure Material
Steel
Line Rated Current
30 A
Mounting Type
Surface
NEMA Size
12,3R
Net Weight
12 kg
Number of Phases
3 Phase
Number of Poles
4 Pole
Short Circuit Current
200 kA
Size
6.8 in
TC Connection
Lugs
Type
Non-fusible disconnect;Single Throw Safety Switch
Voltage
600 Volt
Wire Size
AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper
Wire Type
N

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901507819
Environmental Conditions
RAINPROOF, SLEET/ICE PROOF AND DUST TIGHT (INDOOR/OUTDOOR)
GTiN
00785901507819
Product UPC
78590150781
Weight
12 kg

Dimensions

Depth
6.8 Inch
Height
20-1/2 Inch
Warranty Length
18 mth
Width
16.13 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E2875
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • EIK1
  • EIK2
  • LOGK2
  • GTK0610
  • GTK0610C
  • CL0306F
