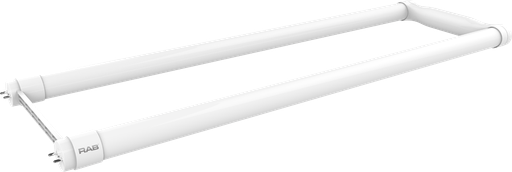

RAB U6-18-850-SE-BYP LED U Bent 18W

Manufacturer: Rab Electric Mfg | Catalog # U6-18-850-SE-BYP | Echo Electric Part # 180018
$34.82/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Linear Tubes 2200 Lumens U6 18W 80CRI 5000K Single Ended Ballast Bypass

Technical Information

Applications
Damp Locations,Totally Enclosed Fixtures
Average Rated Life
50,000 hr
Base
2G13
Base Type
2G13
Beam Angle
180 degrees
Beam Spread
240 degrees
Bulb Shape
U-Shaped
Color Accuracy
82
Color Rendering Index
82
Color Temperature
5000 K
Correlated Color Temp
5,000 K
Dimmable?
No
Efficacy
122 LPW
Input Voltage
100 V
Input Wattage
18
Lumens
2,200 Lumen
Material
Glass
Operating Frequency
60 Hz
Operating Temperature
-20 degrees C
Power Factor
0.9
Type
LAMPS
Voltage
120-277 Volt
Wattage
18

Manufacturer Information

Brand
Rab Design Lighting

General Product Info

12-Digit UPC
019813751269
Color
5000 K
Finish
White
GTiN
00019813751269
Product UPC
01981375126
Weight
0.9 lb

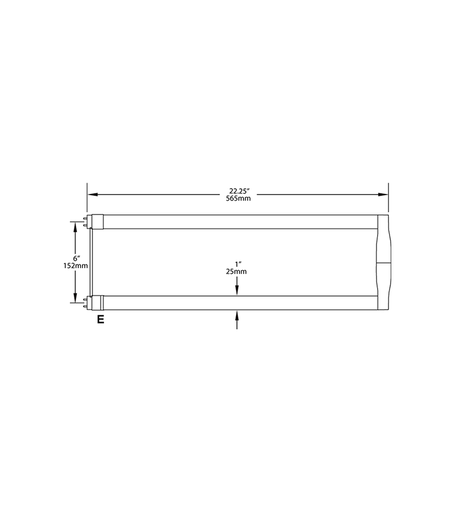

Dimensions

Length
2 Foot
Warranty Length
5 yr
Features
  • Replacement for conventional fluorescent T8 and T12 linear tubes
  • Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
  • Approximately 50% more energy efficient when compared to Fluorescent T8 lamps
  • Works with non-shunted sockets ONLY
  • Separate wiring harness and socket kit accessory available
  • 50,000 hour Lifespan
  • Rated for use in enclosed and open fixtures in dry or damp locations
  • Diffused frosted lens will maintain the same light quality over time
  • Instant on full brightness
  • Environmentally friendly, no mercury used
  • NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)
  • Compatible with RAB specified 0-10V dimming system
  • Equivalency
  • Warranty
