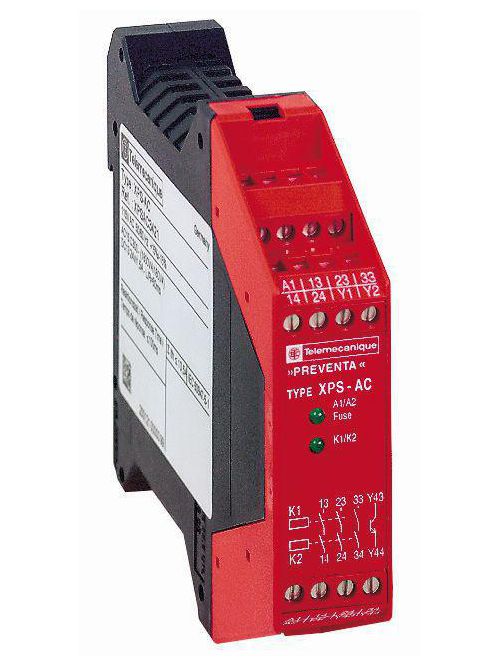

Product image for Square D XPSAC5121 24 VDC 3NO 2-LED Display Safety Relay Module
Image thumbnail 0
Image thumbnail 1
Email

Square D XPSAC5121 24 VDC 3NO 2-LED Display Safety Relay Module

Manufacturer: Square-D / Schneider | Catalog # XPSAC5121 | Echo Electric Part # 180050
$262.60/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This XPSAC safety module monitors emergency shutdown pushbuttons and limit switches. It meets the requirements of Performance Level PL e/Category 4 conforming to standard EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 61508 and EN/IEC 62061. It can be used for monitoring emergency stop circuits conforming to standards EN/ISO 13850 and EN/IEC 60204-1. 24V AC/DC supply allows direct supply via an auxiliary transformer, like ABT7 or ABL6, allowing saving at installation time. It has additional solid-state output for communication with PLCs about safety status of your process.

Technical Information

Applications
Emergency stop;Switch monitoring;For emergency stop and switch monitoring
Contact Configuration
RELAY INSTANTANEOUS OPENING 3 NO
Contact Rating
1.5 A 24 V DC-13)50 MS RELAY OUTPUT,180 VA HOLDING AC-15 C300 RELAY OUTPUT-1800 VA INRUSH AC-15 C300 RELAY OUTPUT
Current
24 V
Enclosure
IP20 CONFORMING TO EN/IEC 60529(TERMINALS), IP40 CONFORMING TO EN/IEC 60529(ENCLOSURE)
Net Weight
0.16 kg
Output
RELAY INSTANTANEOUS OPENING, 3 NO, VOLT-FREE
Power Supply
24 V AC - 20...10 -24 V DC - 20...20
Standard
EN 1088/ISO 14119,EN 60204-1,EN/IEC 60947-5-1,EN/ISO 13850
Storage Temperature
-25-85 degrees C
TC Connection
CAPTIVE SCREW CLAMP TERMINALS, 1 X 0.14...1 X 2.5 MMA FLEXIBLE WITHOUT CABLE END-CAPTIVE SCREW CLAMP TERMINALS, 1 X 0.14...1 X 2.5 MMA SOLID WITHOUT CABLE END-CAPTIVE SCREW CLAMP TERMINALS, 1 X 0.25...1 X 1.5 MMA FLEXIBLE WITH CABLE END, WITH BEZEL-CAPTIVE SCREW CLAMP TERMINALS, 1 X 0.25...1 X 2.5 MMA FLEXIBLE WITH CABLE END, WITHOUT BEZEL-CAPTIVE SCREW CLAMP TERMINALS, 2 X 0.14...2 X 0.75 MMA FLEXIBLE WITHOUT CABLE END-CAPTIVE SCREW CLAMP TERMINALS, 2 X 0.14...2 X 0.75 MMA SOLID WITHOUT CABLE END-CAPTIVE SCREW CLAMP TERMINALS, 2 X 0.25...2 X 1 MMA FLEXIBLE WITH CABLE END, WITHOUT BEZEL-CAPTIVE SCREW CLAMP TERMINALS, 2 X 0.5...2 X 1.5 MMA FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL
Type
Preventa safety module

Manufacturer Information

Brand
Telemecanique
Sub Brand
PREVENTA

General Product Info

12-Digit UPC
389110274014
GTiN
03389110274011
Product UPC
78590142056
Weight
0.35 lb

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,TV,UL
Country of Origin
Indonesia
