PHNX 3076030 UTI 2 5-PE/L/N

Manufacturer: Phoenix Blocks | Catalog # 3076030 | Echo Electric Part # 180055
$9.57/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days

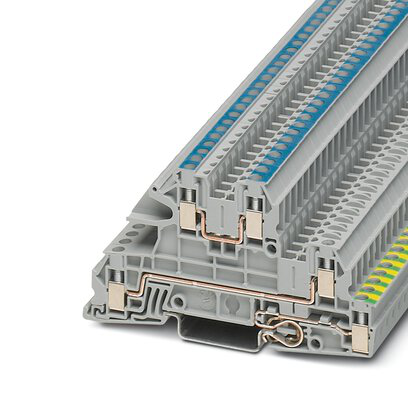

Installation ground terminal block, nom. voltage: 400 V, nominal current: 24 A, Screw connection, 1st, 2nd and 3rd level, Rated cross section: 4 mm², cross section: 0.2 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray

Technical Information

Strip Length
9 mm

Manufacturer Information

Brand
Phoenix Products

General Product Info

12-Digit UPC
463566440060
Color
Gray
Product UPC
46356644006

Dimensions

Height
51.2 mm
Length
93.5 mm
Width
5.2 mm

Certifications and Compliance

Country of Origin
Germany
Features
  • The asymmetrical arrangement of the terminal blocks on the DIN rail enables the neutral busbar to be routed past the terminal blocks
  • The installation terminal block features a particularly low-profile design and is suitable for wiring in flat installation distributors
Approvals
  • VDE Zeichengenehmigung
  • cULus Recognized
  • EAC
  • IECEE CB Scheme
  • CSA
  • UL Recognized
  • cUL Recognized
