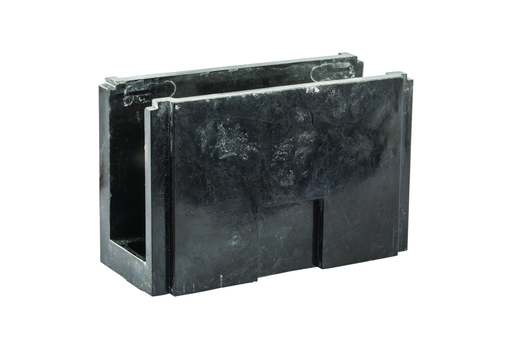

Product image for NSI AM-P1-H12 6 AWG to 350 MCM Line 14 to 4 AWG Load 13-Terminal Black Aluminum Single Primary Power Distribution Block
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

NSI AM-P1-H12 6 AWG to 350 MCM Line 14 to 4 AWG Load 13-Terminal Black Aluminum Single Primary Power Distribution Block

Manufacturer: NSi | Catalog # AM-P1-H12 | Echo Electric Part # 180111
$115.82/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Buy American Compliant Buy American Compliant Product Spec Sheet
Power Distribution Block (1) 350 MCM-6 AWG Primary (12) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.

Technical Information

Amperage
310 Amp
Applications
Terminate, Splice, Tap Power Connectors
Base Material
Glass-Filled Polyester
Body Material
Aluminum
Conductor Size
6 AWG-350 kcmil
Material
Aluminum
Max Temperature
90 degrees C
Mounting Type
2 Mounting Holes
Number of Terminations
13
Size
L=4.00 - H=2.62 - W=1.71 IN
Standard
Recognized To UL1059
Type
Single Primary
Voltage
600 Volt
Wire Size
6 AWG-350 kcmil

Manufacturer Information

Brand
NSI Industries
Sub Brand
Connector Blocks

General Product Info

12-Digit UPC
662381165404
Color
Black
GTiN
00662381165404
Product UPC
66238116540

Dimensions

Height
2.62 Inch
Length
4 Inch
Warranty Length
1 yr
Width
1.71 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Each block can stand alone or combine with other blocks to form a multi-block set
  • Add as many holes as you need, in any configuration you want
  • There are no end pieces or connector pieces to fool around with
  • The connector body is made from high strength, high conductivity aluminum alloy and is mounted in a high strength glass-filled polyester base
  • Connector BlokTM covers are available in 3 sizes and fits all styles and configurations
Certifications and Standards
  • CSA
  • UL Recognized
