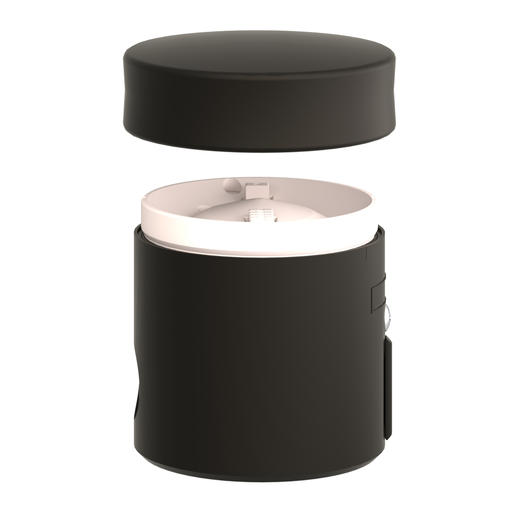

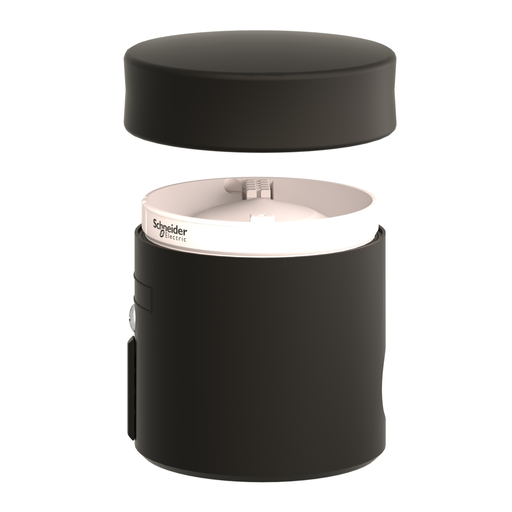

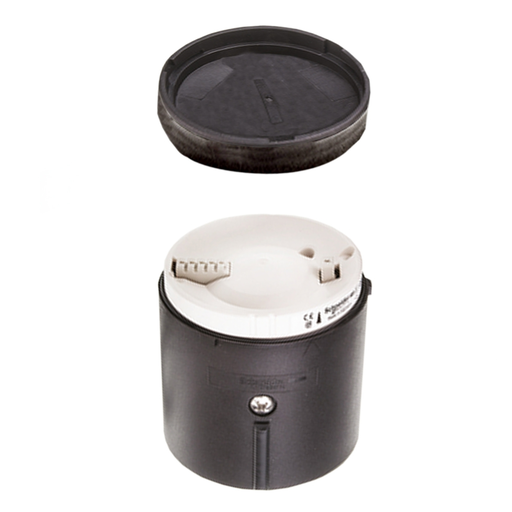

SQUARED XVBC21A Base unit with cove

Manufacturer: Square-D / Schneider | Catalog # XVBC21A | Echo Electric Part # 180140
$187.18/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This base unit is designed to be fitted with indicator bank to create complete tower light and allow clear display of the status of your machines. It is made of glass reinforced polyamide material and it allows the cable to entry from the side. It complies with EN/IEC 60947-5-1, EN/IEC 60068-2-27, UL 508, CSA, AS-Interface No 25701 standards with NEMA 4X protection.

Technical Information

Amperage
250 MA UNDER LOAD VIA AS-INTERFACE LINE-30 MA UNDER LOAD EXTERNAL-30 MA NO LOAD
Cable Entry
Side Entry
Current
250 mA
Enclosure
IP65 IEC 60529-IP65 NF C 20-010,NEMA 4X UL 508 INDOOR)
Lens Material
GLASS REINFORCED POLYAMIDE BASE UNIT-POLYCARBONATE COVER UNIT
Material
Glass Reinforced Polyamide: Base Unit,Polycarbonate: Cover Unit
Net Weight
0.19 kg
Operating Temperature
-10-50 degrees C
Size
70 MM
Standard
EN/IEC 60947-5-1
Storage Temperature
-20-70 degrees C
Type
BASE UNIT WITH COVER
Voltage
EXTERNAL 19.2...30 Volt-AS-INTERFACE LINE 24...31.6 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XVBC

General Product Info

12-Digit UPC
785901432012
GTiN
03389110845044
Product UPC
78590143201
Weight
0.19 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
AS-Interface No 25701,CSA
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • XVBZ02
  • XVBZ02A
  • XVBZ04
  • XVBZ01
  • XVBL34
  • XVBL35
  • XVBL36
