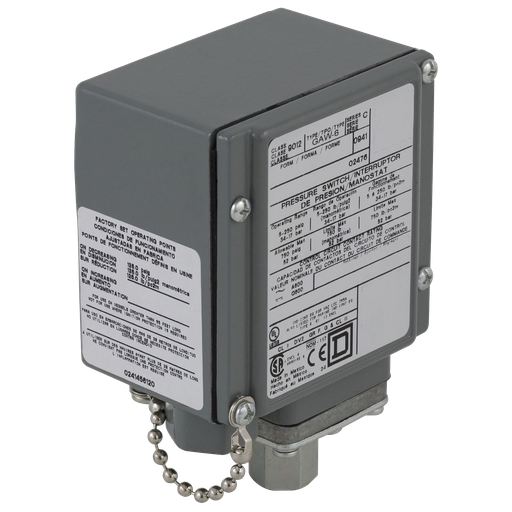

Product image for Square D 9012GDW24 480 VAC DPDT 4-Circuit 1.5 to 75 PSIG Non-Adjustable Differential Pressure Switch
Image thumbnail 0
Image thumbnail 1
Email

Square D 9012GDW24 480 VAC DPDT 4-Circuit 1.5 to 75 PSIG Non-Adjustable Differential Pressure Switch

Manufacturer: TES ELECTRIC | Catalog # 9012GDW24 | Echo Electric Part # 180156
$770.38/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Pressure switch 9012G, fixed scale, 1 threshold, 1.5 to 75 PSIG

Technical Information

Amperage
3 Amp
Applications
Detection of 1 single threshold
Contact Configuration
2(NC-NO), DPDT-DB, FORM ZZ, SNAP ACTION, SILVER NICKEL CONTACTS
Enclosure
Die cast aluminium alloy 380
Enclosure Material
Aluminum
Line Rated Current
0.22 A
Net Weight
3 lb
Operating Cycles
120 cyc/mn
Operating Temperature
-10-185 Adegrees F
Standard
CSA C22.2 No 14,UL 508
Type
Electromechanical pressure switch;Fixed

Manufacturer Information

Brand
Telemecanique
Sub Brand
9012G

General Product Info

12-Digit UPC
785901024989
Environmental Conditions
WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTiN
00785901024989
Product UPC
78590102498
Weight
3 lb

Dimensions

Depth
2.63 Inch
Height
5.55 Inch
Warranty Length
18 mth
Width
3.5 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA LR25490 Class 3211 03,UL Listed File E12158 CCN NKPZ And CCN NTHT
Country of Origin
Mexico
