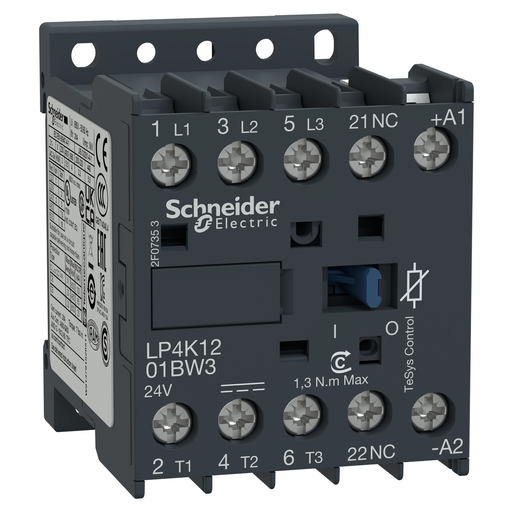

Product image for Square D LP4K1201BW3 600 VAC 12 Amp 3-Pole 1NO Screw Clamp Terminal Non-Reversing IEC Contactor
Email

Square D LP4K1201BW3 600 VAC 12 Amp 3-Pole 1NO Screw Clamp Terminal Non-Reversing IEC Contactor

Manufacturer: Square-D / Schneider | Catalog # LP4K1201BW3 | Echo Electric Part # 180203
$209.35/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys K contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3 (5.5kW@400V). It provides a low consumption 24V DC coil with transient suppressor module, 1NC built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Technical Information

Applications
RESISTIVE LOAD-MOTOR CONTROL
Coil Voltage
POWER CIRCUIT 690 V AC 50/60 HZ-SIGNALLING CIRCUIT <= 690 V AC 50/60 HZ
Contact Configuration
1 NC,3 NO
Contact Rating
20 A 50 AC POWER CIRCUIT-10 A 50 AC SIGNALLING CIRCUIT
Impedance
3 MOhm - Ith 20 A 50 Hz For Power Circuit
Net Weight
0.235 kg
Operating Cycles
3600 cyc/h
Operating Temperature
-25-50 Adegrees C
Range
TeSys
Size
45 MM,57 MM,58 MM
Standard
CSA C22.2 No 60947-4-1,CSA C22.2 No 60947-5-1,EN/IEC 60947-4-1,EN/IEC 60947-5-1,GB/T 14048.4,UL 60947-4-1,UL 60947-5-1
Storage Temperature
-50-80 degrees C
TC Connection
SCREW CLAMP TERMINALS 1 1.5-4 MMASOLID- SCREW CLAMP TERMINALS 1 0.75-4 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 0.34-2.5 MMAFLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 1.5-4 MMASOLID- SCREW CLAMP TERMINALS 2 0.75-4 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 0.34-1.5 MMAFLEXIBLE WITH CABLE END
Type
CONTACTOR
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS K

General Product Info

12-Digit UPC
785901823971
GTiN
03389110791167
Product UPC
78590182397
Weight
0.235 kg

Dimensions

Depth
57 mm
Height
58 mm
Warranty Length
18 mth
Width
45 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
CB Scheme,CCC,CE,CSA,EAC,UKCA,UL
Country of Origin
Indonesia
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • LA1KN11
  • LA1KN20
  • LA1KN02
  • LA9D90
  • LA2KT2E
  • LA2KT2U
