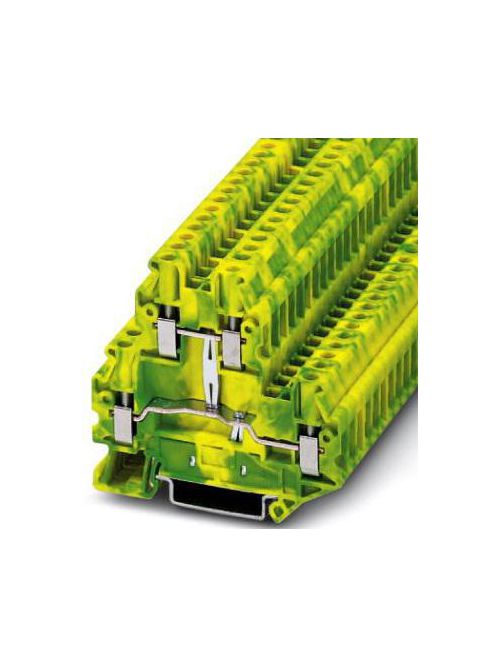

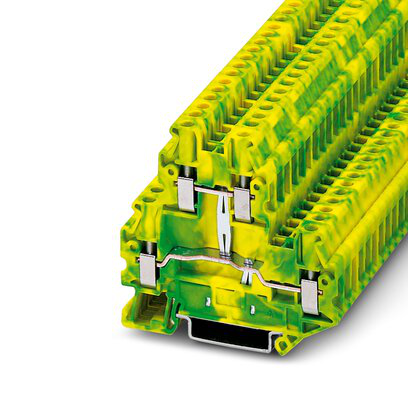

Product image for PHNX 3044759 UTTB 4-PE
Image thumbnail 0
Image thumbnail 1
Email

PHNX 3044759 UTTB 4-PE

Manufacturer: Phoenix Blocks | Catalog # 3044759 | Echo Electric Part # 180294
$13.48/ea
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Ground modular terminal block, number of connections: 4, connection method: Screw connection, cross section: 0.14 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow

Technical Information

Connection Type
Screw
Mounting Type
NS 35/7.5, NS 35/15 DIN Rail
Strip Length
9 mm
Temperature Rating
-60 to 110 degrees C
Torque Rating
0.6 - 0.8 N-m
Type
2-Level

Manufacturer Information

Brand
Phoenix

General Product Info

12-Digit UPC
179189970838
Color
Green/Yellow
Product UPC
17918997083

Dimensions

Length
69.9 mm
Width
6.2 mm

Certifications and Compliance

Country of Origin
Germany
Features
  • Since there are two function shafts per level, all potential distribution tasks can be implemented quickly
  • For a clear overview, each terminal point supports large-surface labeling
  • As an option, the levels can be connected using the FBS?PV UT vertical bridge
  • Tested for railway applications
  • For example, two separate potentials can by routed side by side with the help of bridging between non-adjacent terminal blocks
Approvals
  • cULus Recognized
  • EAC
  • EAC Ex
  • IECEx
  • PRS
  • DNV GL
  • ATEX
  • RS
  • CSA
  • UL Recognized
  • cUL Recognized
