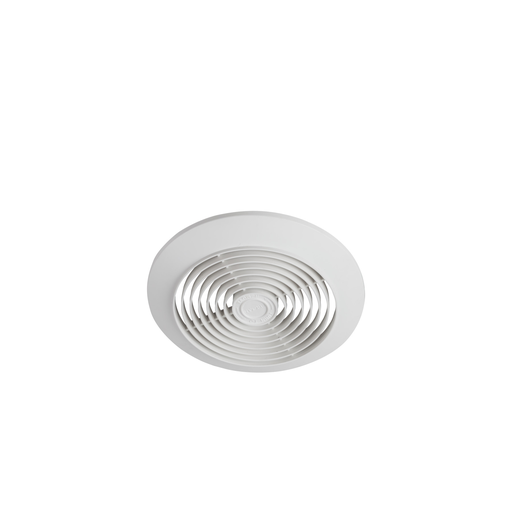

Product image for Broan 512M 0.7 Amp 120/127 Volt 70 CFM 3.5 Sones 8 Inch White Polymeric Square Grille Ventilator
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5

Email

Broan 512M 0.7 Amp 120/127 Volt 70 CFM 3.5 Sones 8 Inch White Polymeric Square Grille Ventilator

Manufacturer: Nutone | Catalog # 512M | Echo Electric Part # 180422

$90.00/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Say goodbye to unbearable heat and humidity in the garage, unwanted smells in the kitchen and odors in the laundry room, rec room or garage. The Broan® 70 CFM Through-Wall Ventilation Fan is the perfect solution for rooms up to 65 sq. ft, including a one car garage, or use for spot ventilation near areas such as a work bench, garbage can, car, or lawn mower. The durable galvanized steel housing provides superior protection against the elements and wear and tear. It features a built-in exterior wall cap/vent with bird screen, which reduces install time, no duct work needed. Customize your fan with one of Broan-NuTone’s wall controls. For automatic operation, choose from a humidity or motion sensing control. To automatically turn off the fan after you leave the room or garage, pair the fan with a delay-off or countdown timer. (Wall controls sold separately)

Technical Information

Airflow Rate
70 CFM
Amperage
0.7 Amp
Applications
For Removing Humidity From Laundry Rooms, Tobacco Smoke From Rec Rooms, Fumes From Workshops Or Cooking Fumes From Kitchens
Duct Shape
Round
Duct Size
6 in
Installation
Wall
Nightlight
No
RPM
2600 rpm
Standard
HVI 2100 Certified,UL Listed
Type
Through Wall Fan
Voltage
120 Volt
Wattage
25.4 Watt

Manufacturer Information

Brand
Broan-NuTone

General Product Info

12-Digit UPC
026715067138
Color
White
Grille Material
Polymeric
GTiN
00026715067138
Housing Material
Steel
Product UPC
02671506713
Weight
3 lb

Dimensions

Grille Length
8 in
Grille Width
8 in
Height
1 Inch
Housing Height
7-1/2 in
Housing Width
6 in
Length
4-3/8 Inch
Warranty Length
1 yr
Width
8 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • 70 CFM - ventilate up to 65 sq. ft.

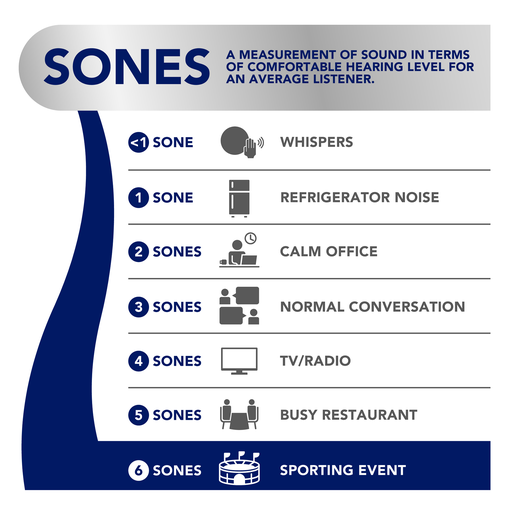

  • 6.0 Audible Sones
  • Fight heat, humidity buildup and unwanted smells inside the garage, kitchen, laundry or rec room

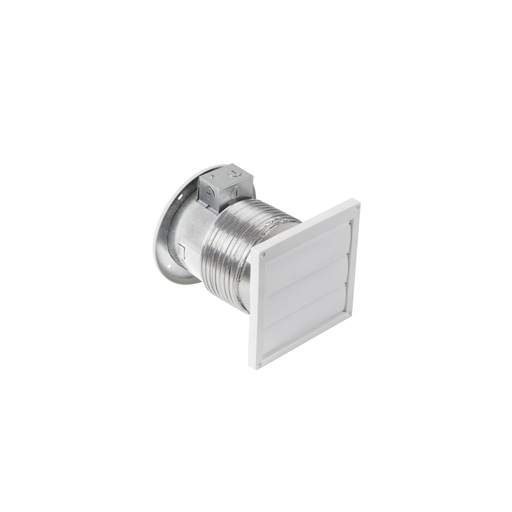

  • Built-in exterior wall cap/vent, no ducting needed for installation
  • Effectively ventilate a one car garage, either attached or detached from the home
  • Use for spot ventilation in a larger garage near a work bench, car, garbage can, lawn mower, or other spaces within the garage
  • Tested and approved for extreme hot and cold weather
  • Motor assembly offers a fast and easy twist-lock installation
  • Housing adjusts to fit walls from 5 1/4 10 thick
  • Galvanized steel housing for superior protection against the elements and wear and tear
  • Pair this fan with a motion or humidity sensing wall control to provide automatic ventilation (sold separately)
  • Install with a delay-off or countdown timer wall control to automatically turn off the fan after leaving the room/garage (sold separately)
  • Eliminate heat, humidity and odors
  • For garage, kitchen, laundry, and rec rooms up to 65 sq ft
  • Built-in exterior wall cap/vent, no ducting needed
