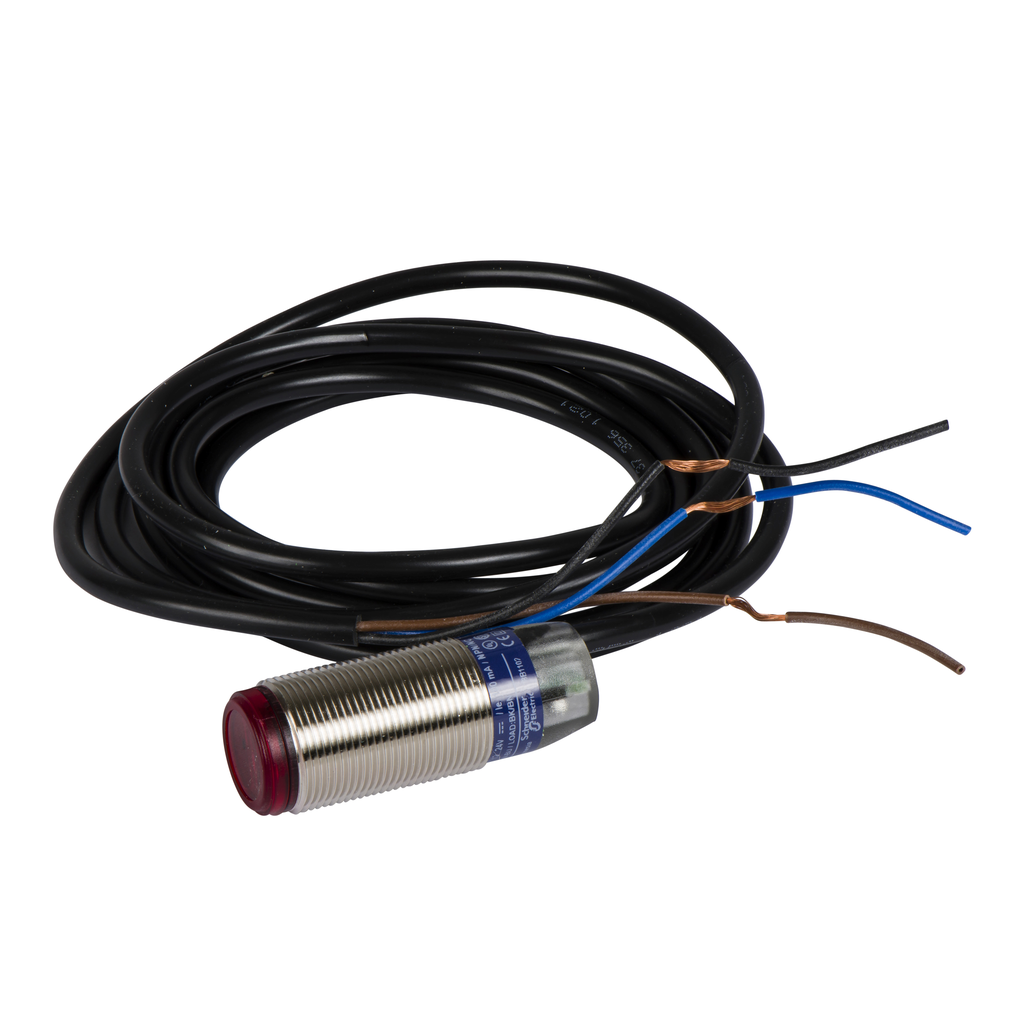

SQD XUB4BPBNL2 PHOTOELECTRIC SENSOR

Manufacturer: TES ELECTRIC | Catalog # XUB4BPBNL2 | Echo Electric Part # 180459
$80.61/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This design 18 single mode (diffuse system) photo-electric sensor has a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This mono-mode cylindrical photoelectric sensor has a metallic body, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides high robustness to the sensor. 1 LED display allows to identify status of the sensor. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.

Technical Information

Applications
GENERAL PURPOSE SINGLE MODE
Current
35 mA
Enclosure
IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529,NICKEL PLATED BRASS
Enclosure Material
Brass
Material
Metal
Net Weight
0.05 kg
Operating Temperature
-25-55 degrees C
Output
1 NC,PNP
Sensing Range
0.15 M DIFFUSE
Size
CYLINDRICAL M18
Storage Temperature
-40-70 degrees C
Type
DC,PNP,AXIAL,PHOTO-ELECTRIC SENSOR
Voltage
12...24 Volt DC WITH REVERSE POLARITY PROTECTION,DC

Manufacturer Information

Brand
Telemecanique

General Product Info

12-Digit UPC
891101557162
GTiN
03389110155716
Product UPC
89110155716

Dimensions

Cable Length
2 m
Diameter
18 mm
Length
60 mm
Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL
