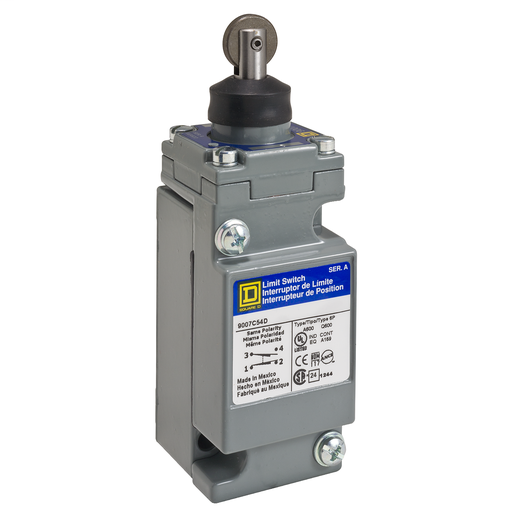

Product image for SQD 9007C66D LIMIT SWITCH 600V 10AM
Image thumbnail 0
Image thumbnail 1
Email

SQD 9007C66D LIMIT SWITCH 600V 10AM

Manufacturer: TES ELECTRIC | Catalog # 9007C66D | Echo Electric Part # 180520
$423.97/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
LIMIT SWITCH 600V 10AMP C +OPTIONS

Technical Information

Action
BY 30A CAM,LATERAL APPROACH, 2 DIRECTIONS,SNAP ACTION
Actuator
STEEL SPRING RETURN ROLLER PLUNGER -)
Amperage
10 Amp
Applications
STANDARD BOX
Contact Configuration
2(NC-NO)
Contact Material
Silver
Contact Rating
NEMA A600/R300
Enclosure
NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
Material
Metal
Number of Poles
2 Pole
Operating Cycles
1M
Operating Temperature
-20-185 Adegrees F STANDARD ENVIRONMENT
Size
1.55 IN,1.79 IN,4.98-4.98 IN
TC Connection
SCREW-CLAMP TERMINALS AWG 22...AWG 12), 1-2
Type
LIMIT SWITCH,PLUNGER HEAD
Voltage
1.2 A 600 Volt AC, A600 NEMA-1.5 A 480 Volt AC, A600 NEMA-3 A 240 Volt AC, A600 NEMA-6 A 120 Volt AC, A600 NEMA-0.11 A 250 Volt DC, R300 NEMA-0.55 A 125 Volt DC, R300 NEMA

Manufacturer Information

Brand
Square D
Sub Brand
9007C

General Product Info

12-Digit UPC
785901046202
GTiN
00785901046202
Product UPC
78590104620
Weight
1.25 lb

Dimensions

Depth
1.79 Inch
Height
4.98 Inch
Warranty Length
18 mth
Width
1.55 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
Country of Origin
Mexico
